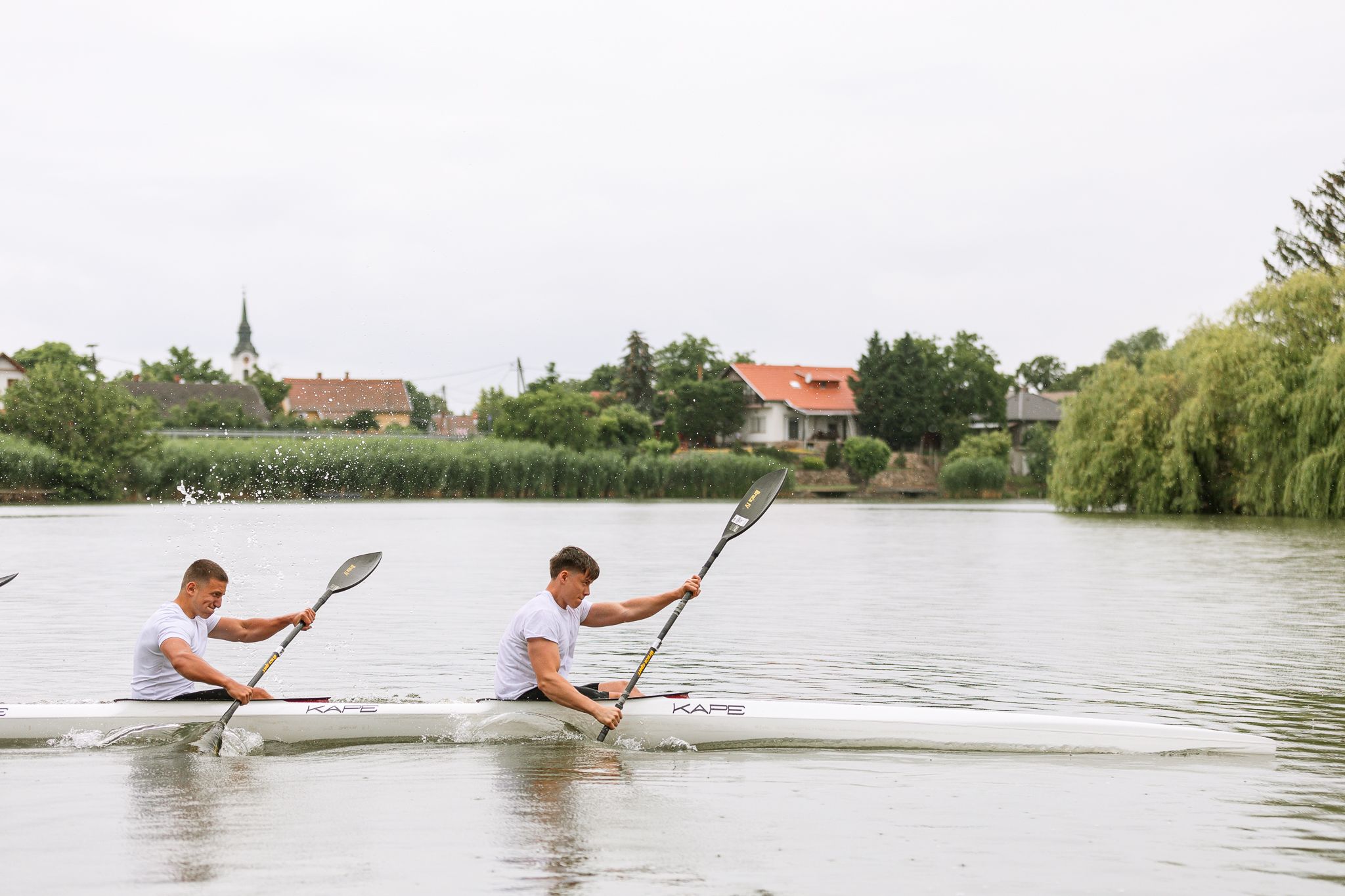

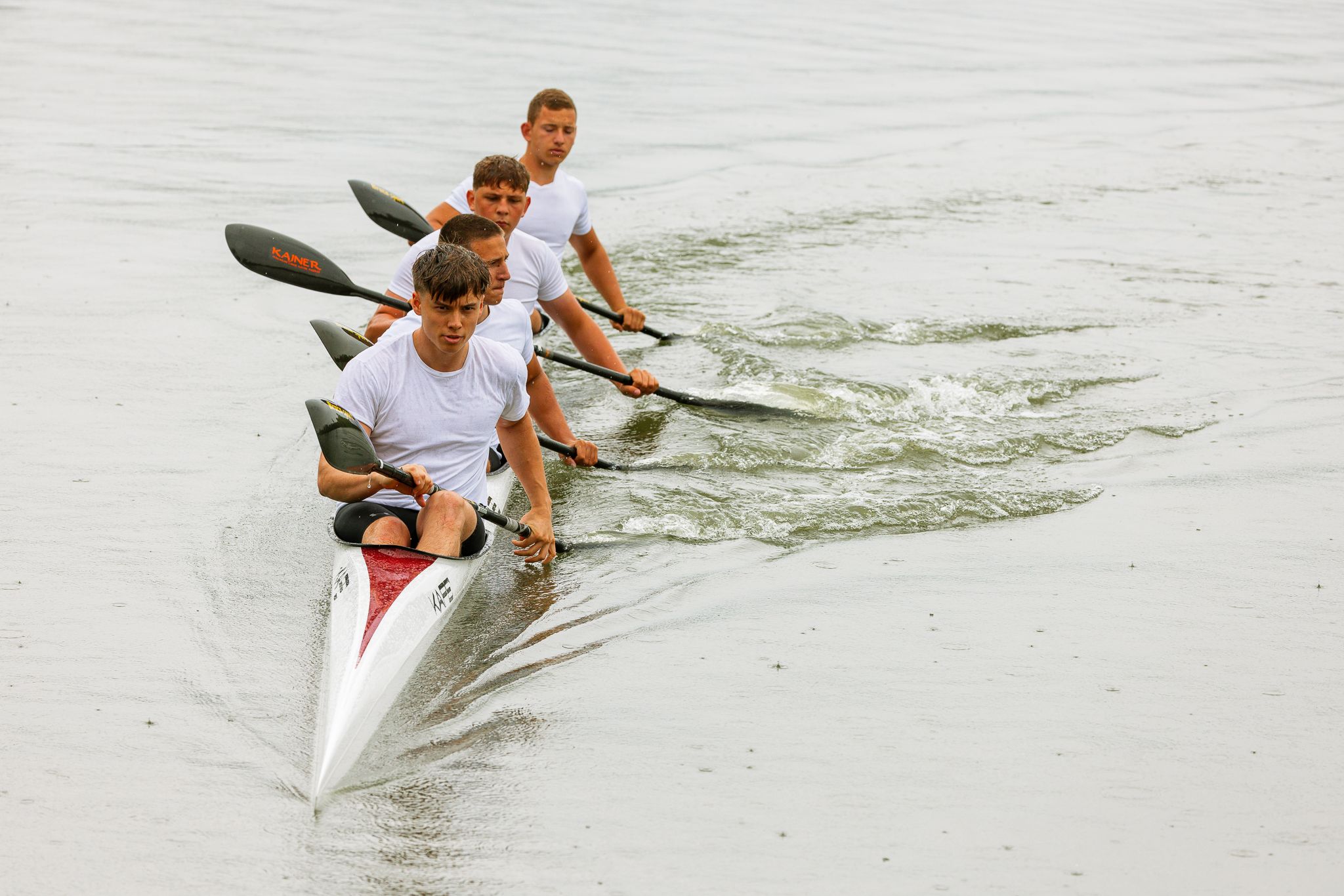

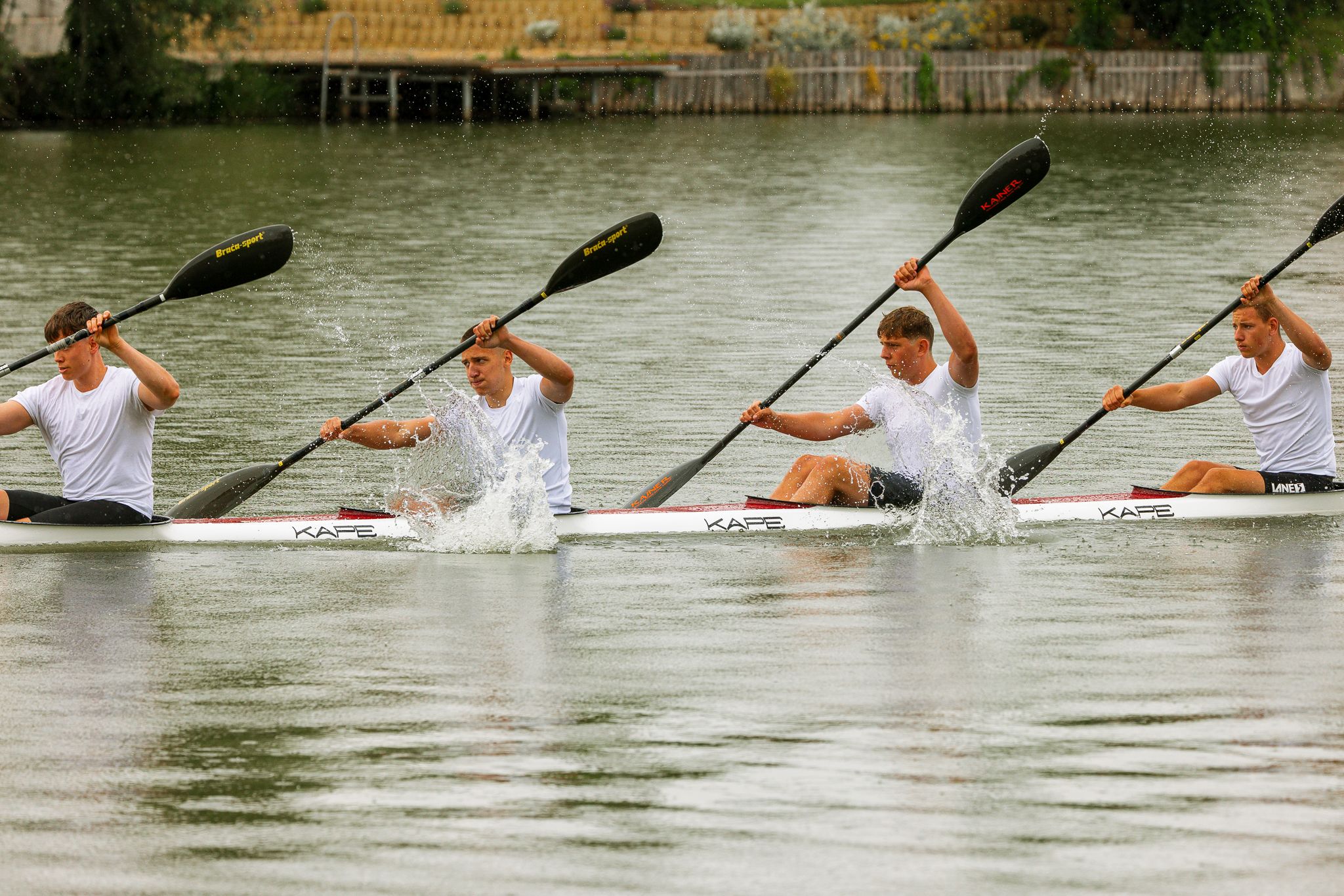

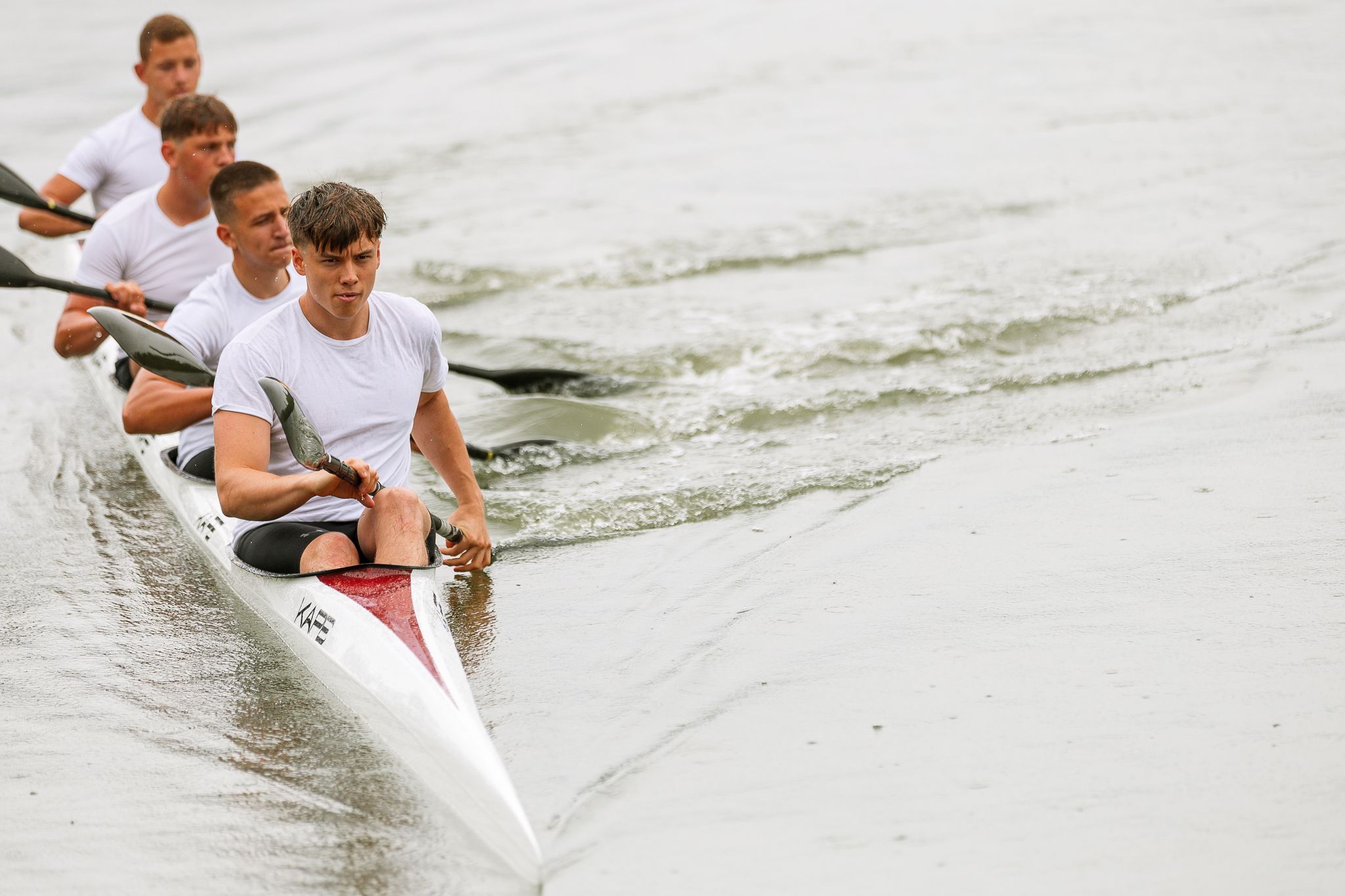

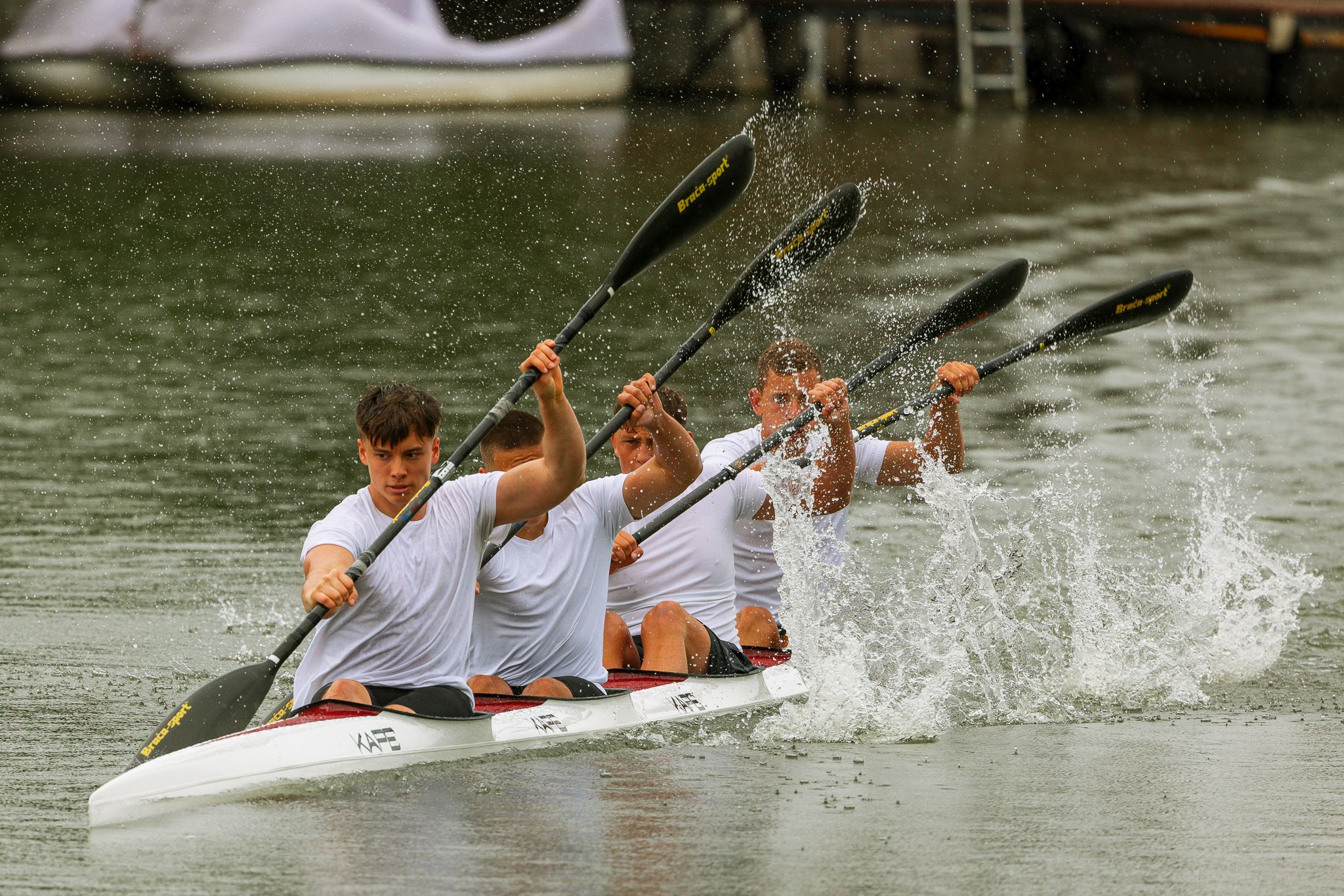

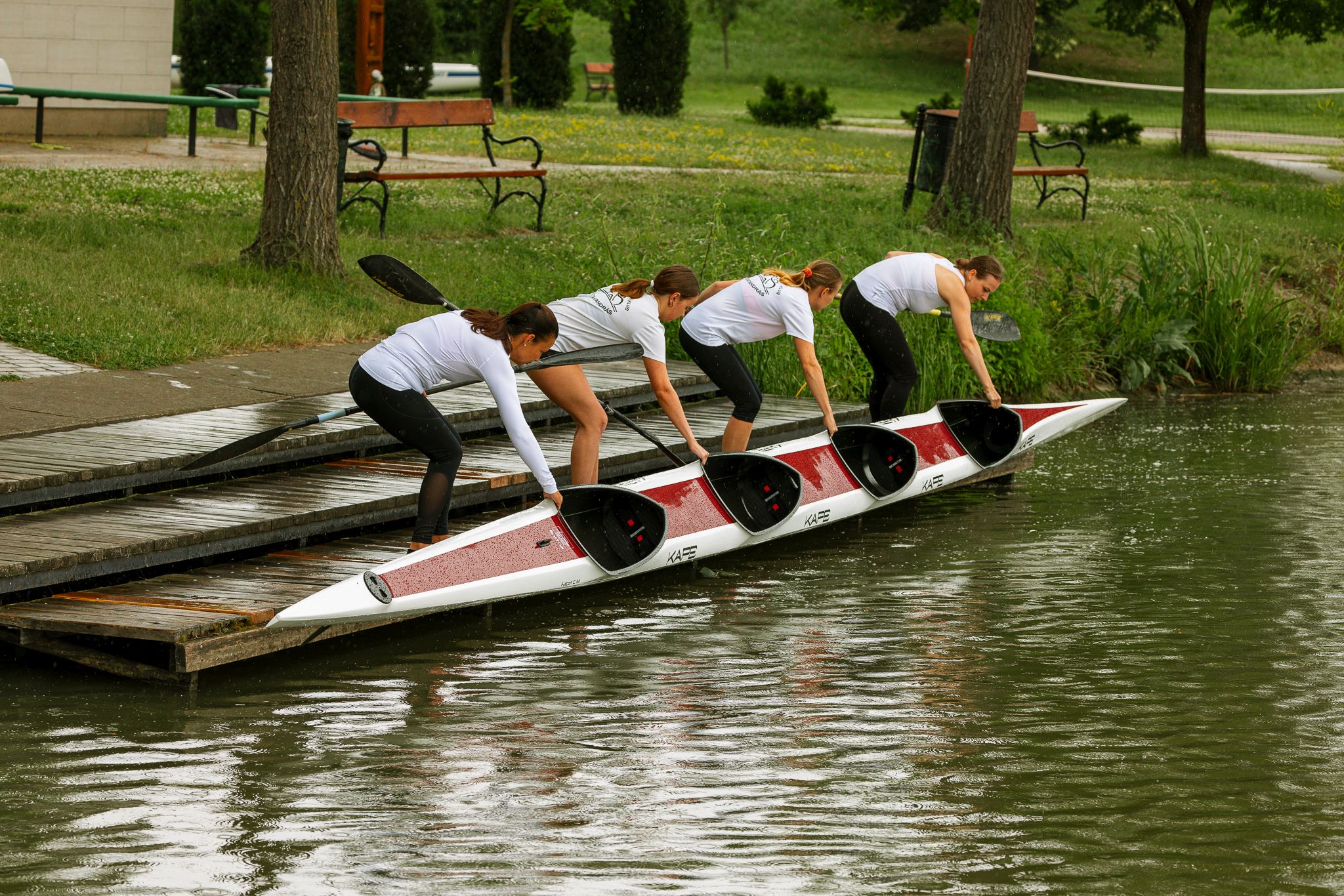

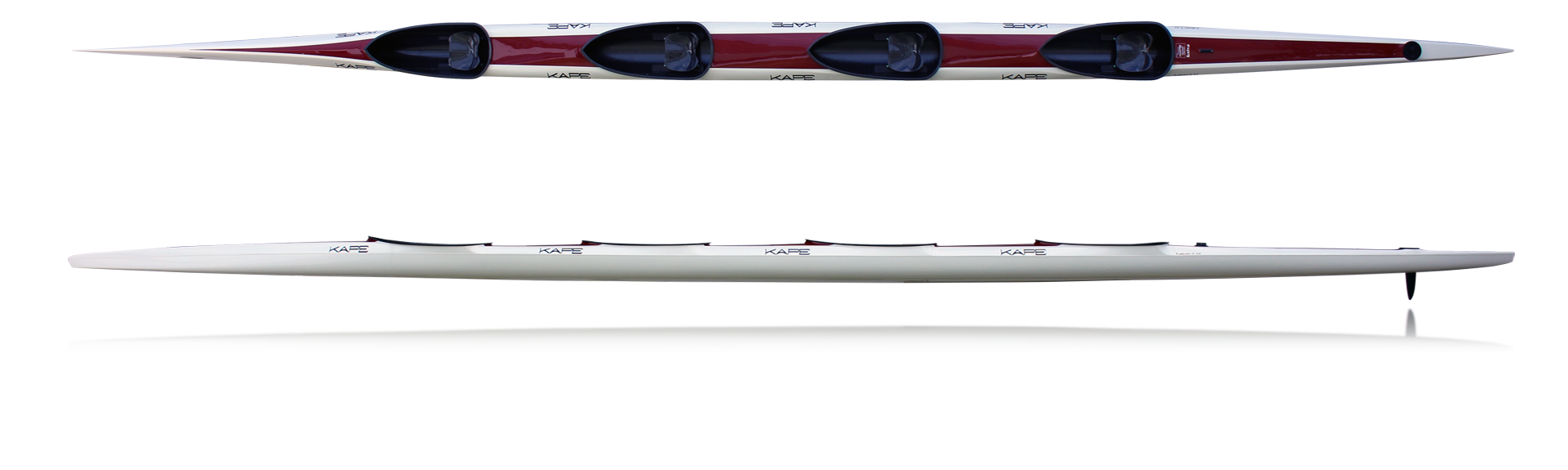

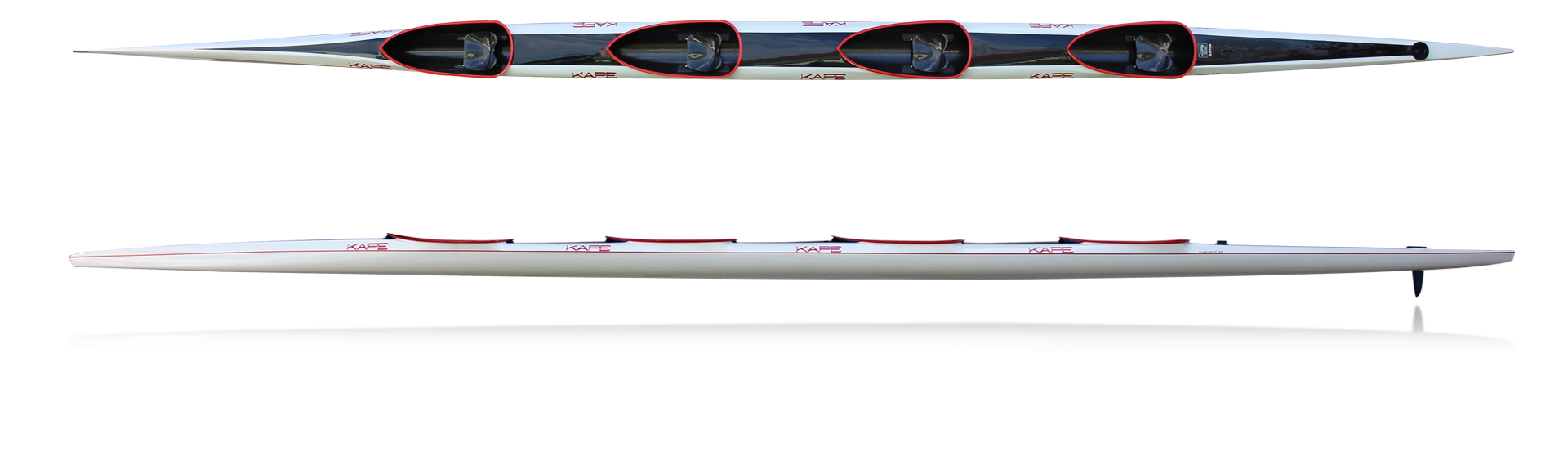

K4 Falcon C M

for crews up to 300 kg

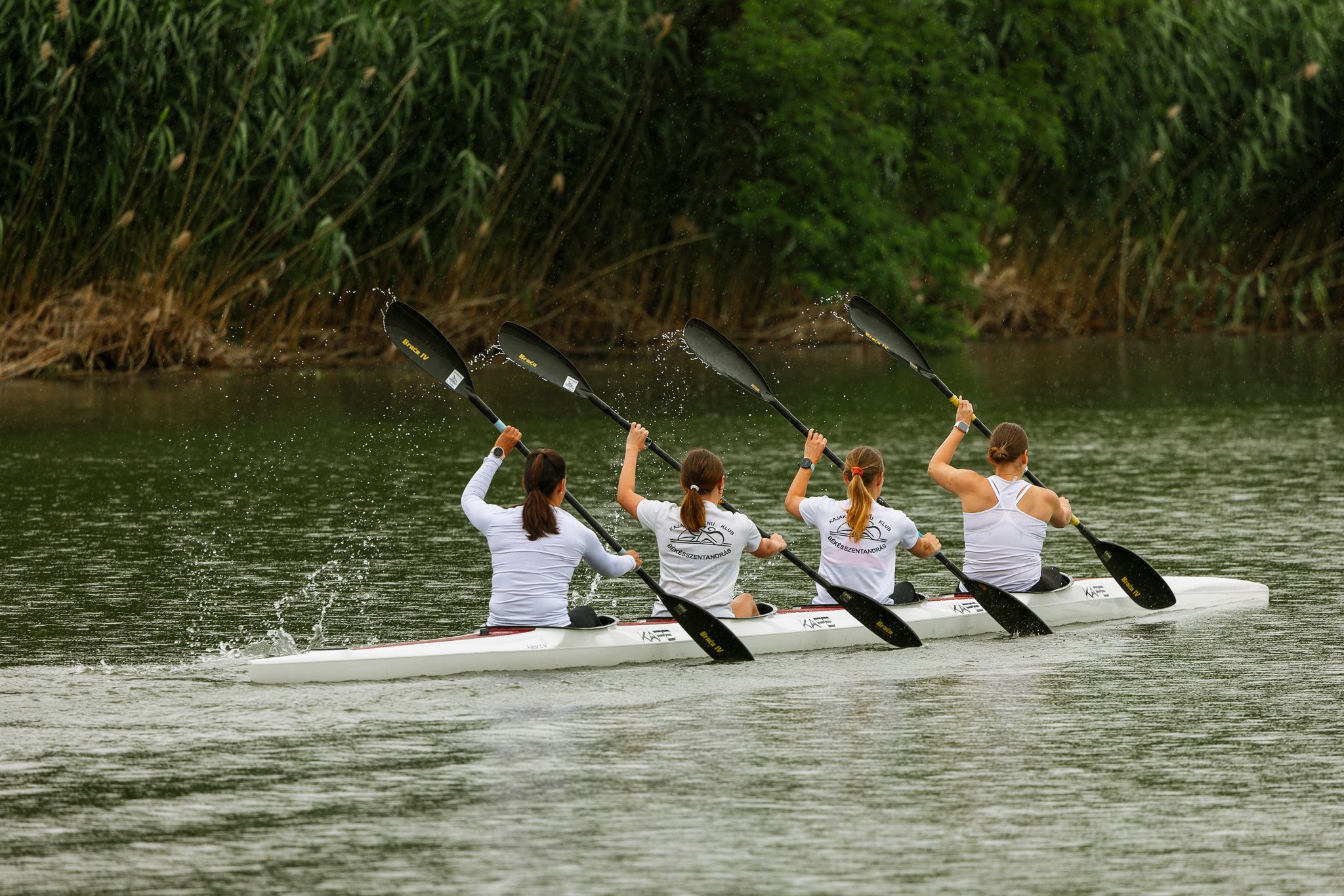

Popular K4 model of striking design for light and medium weight crews

With a U-shaped & thinned-down bow section the hull works at its best when being driven hard. Inverted bow maximize the length of the waterline and hence the hull speed, reduce the size of the bow wave and has a better overall hydrodynamic drag.

It has solid longitudinal stability for rapid acceleration and minimum pitching movements. The kayak stays level in the water so is able to pick up maximum speed quickly, cleanly and efficiently.

Sharp cut away deck allows for close paddle entries and catches in all positions.

  • Crew weight

    up to 300 kg

  • Length

    1100 cm
  • Width

    45 cm
  • Stability level

    1/10
  • Boat weight

    30 kg
  • Cockpit size

    All cockpits: 104x43 cm
  • 01

  • 02

  • 03

  • 04

  • 05

  • 06

  • 07

  • 08

  • 09

  • 10

  • 11

  • 12

  • 13

  • 14

  • 15

  • 16

Features & fittings

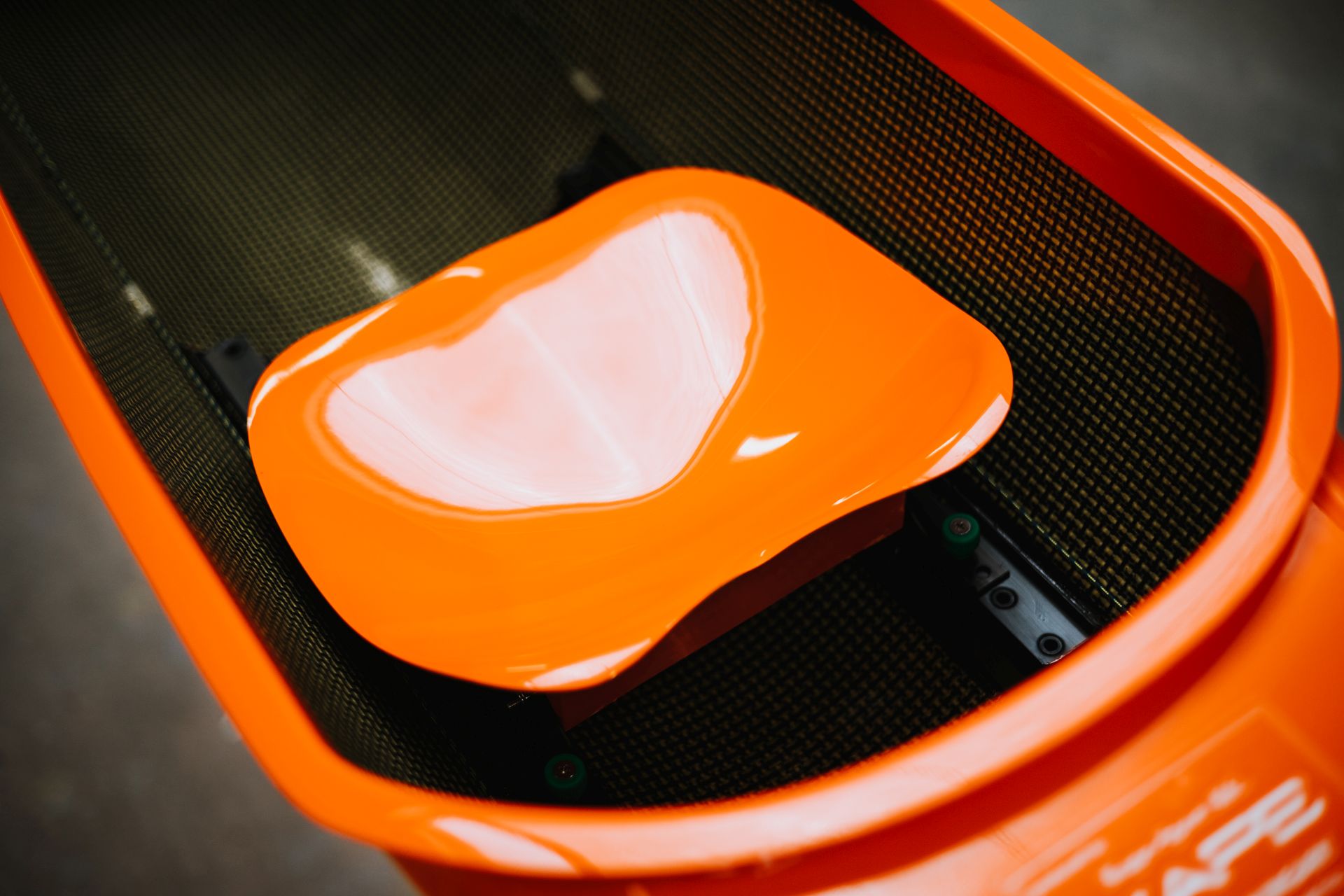

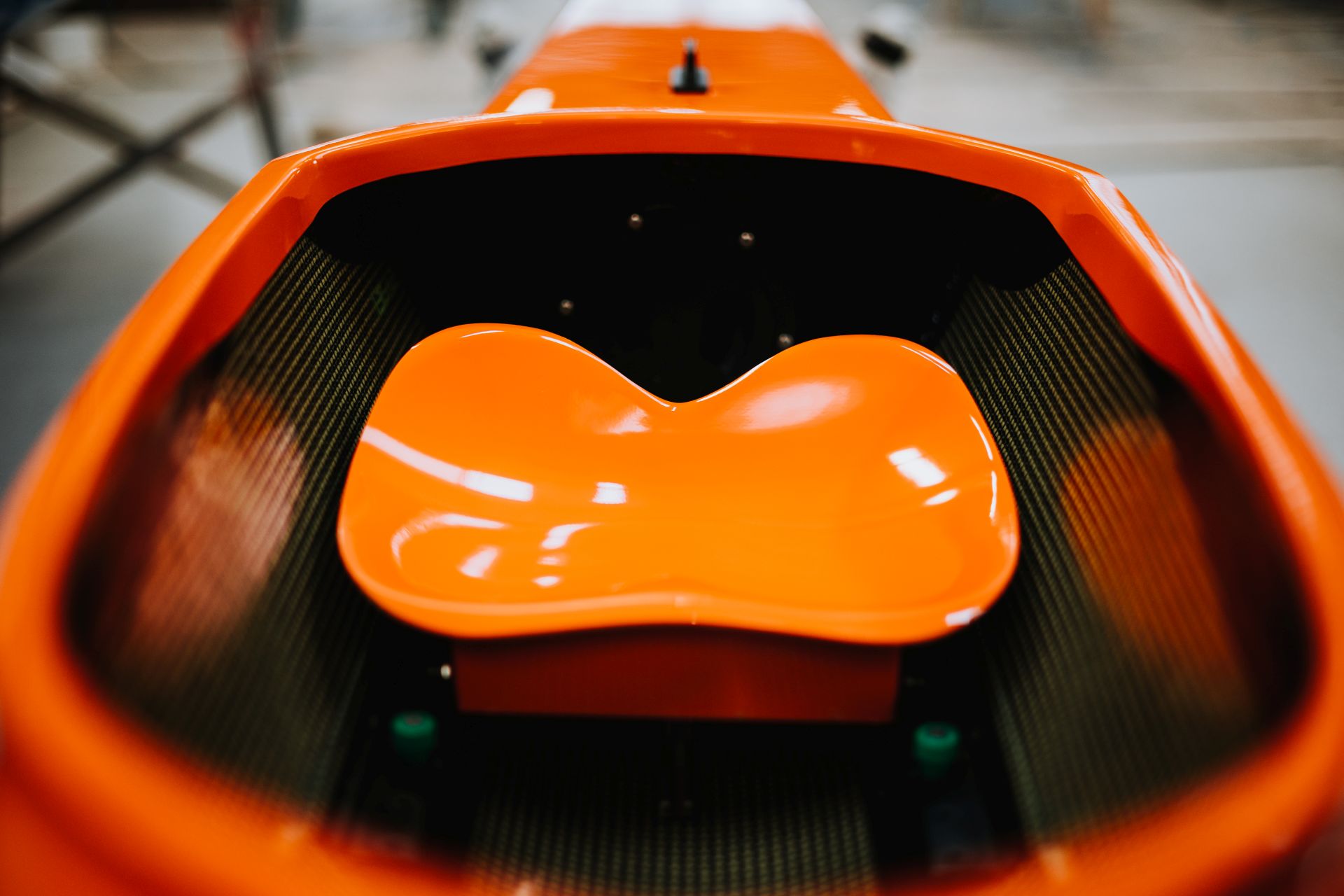

Seat

    All kayaks are equipped with low back racing seat with traditional design as standard - the most popular seat shape in the market.

    Alternatives are:

    • Low position seat reducing seat height by 1 cm giving more stability for the athlete,
    • High-back seat for athletes looking for a better grip on the back,
    • Rotofix seat aims to assist hip movement and giving a good grip & comfort at the same time,
    • Rotoseat is for training to improve hip and leg movement.

    All racing seat is fixed to the same platform rails installed in the kayak so they are convertible with each other.

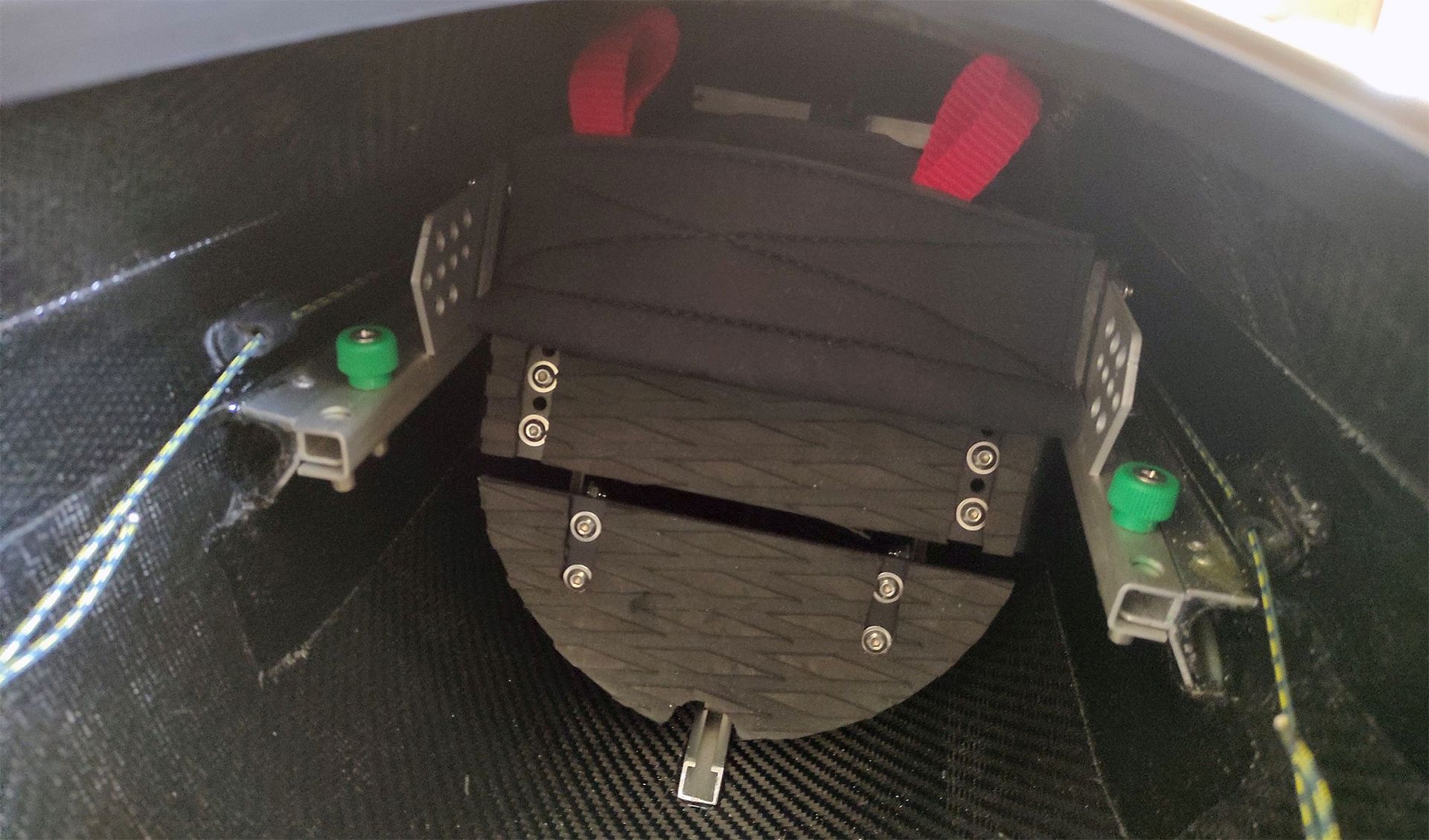

    Footrest and foot strap

      Kayaks are equipped with simple yet reliable footrests with easy-to-adjust spring sliding system. The fixing frame & fittings of the footrest are positioned behind the footplate, so the full width of the boat is available for your feet. This provides comfort & full use of the tiller bar for effective steering. It is also perfect for club use to regularly adjust the footrest distance.

      Reaching under the footrest you can find two thumb nuts at the bottom of the fixing frame - they are to secure the footrest position. Don't forget to realease them before adjusting the footrest distance by the spring slider.

      The footplate is covered with EVA traction pad for non-slip and increased comfort, and equipped with adjustable foot strap.

      Narrow footrest with fixed angle footplate is equipped as standard but full footrest with adjustable angle footplate is available for maximum leg drive & customisation.

      However our spring sliding footrest system provides high adjustability, please let us know if the boat is for a much shorter or taller paddler (approx. under 170 cm or over 185 cm). Then the complete footrest system will be moved more forward or backward during the construction of the kayak.

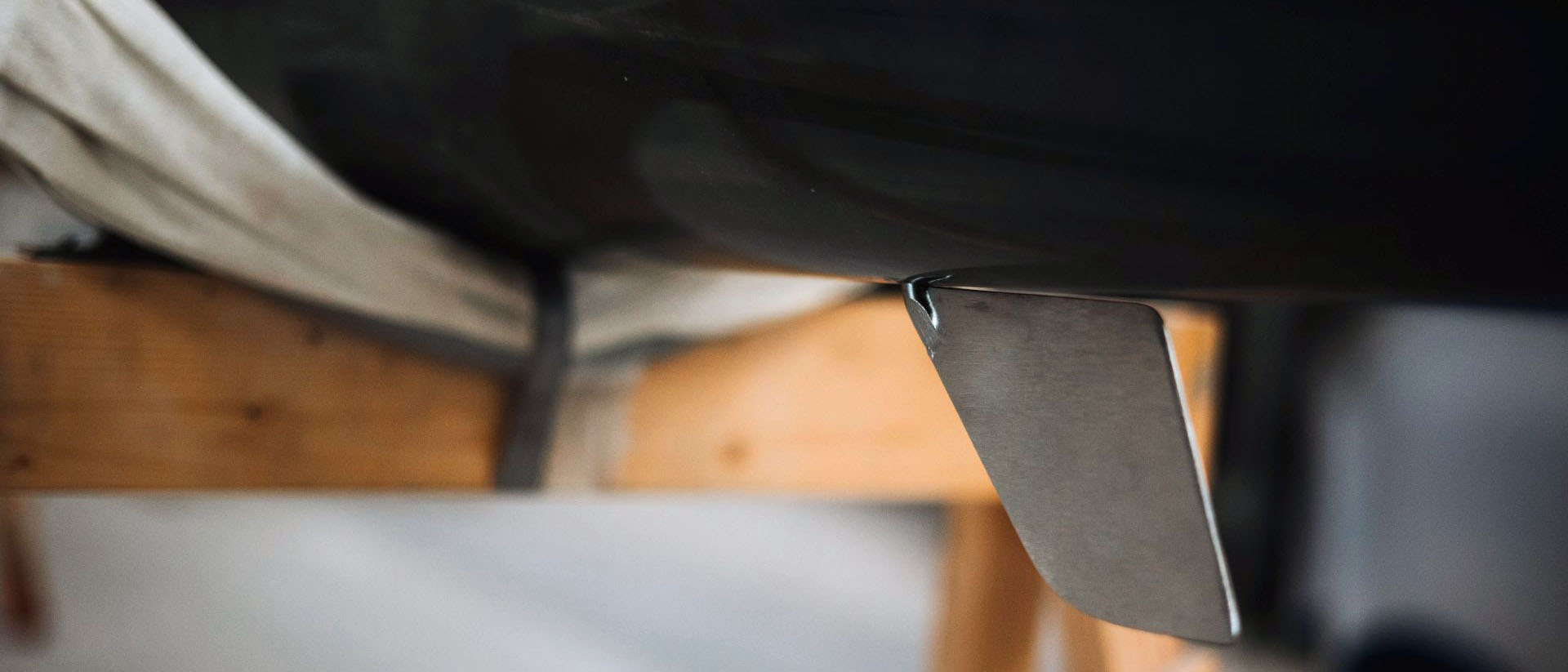

      Rudder

        The kayak is equipped with a high performance plastic race rudder as standard. It provivides excellent tracking with minimum drag and turbulance. These unbalanced & thin rudders have a low blade surface and 6 mm rudder shaft.

        Choosing a durable stainless rudder may be a good option for marathon paddlers or for summer trainings in still water. It is less prone to impact damages during portages or caused by woody debris, not to mention that it also minimises the unpleasant weed pick-up.

        Available bulkhead(s)

        NO bulkheads are installed in flat water racing kayaks as standard. However rear, front or both bulkheads can be installed on request if the boat will be used by paddlers under the age of 14-15, beginners or unstable paddlers.

        A bulkhead (partition) is an upright wall within boat separating watertight compartments so that the capsized boat does not sink. A hatch is placed in the rear bulkhead, mainly to let the rear compartment to dry when not in use and to ventilate the stored boat.

        CONSTRUCTION

        EXTRA

        Economy carbon constrution for CLUB USE & SPRINT TRAINING


        Sandwich core material


        Double carbon reinforcement


        Vinyl ester resin


        Vacuum bagging


        Stiffness

        Design & colour customisation

        All boats are made to order. You can choose your preferred colour(s) of the hull, the deck areas, the trim (seam between deck & hull), the cockpit rims (coamings) and the seats.

        These deck designs are available in all constructions:

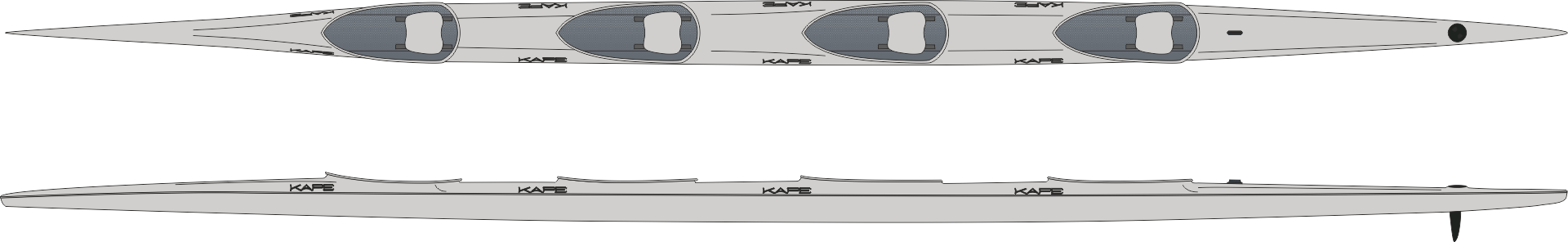

        • #0000 - MONO

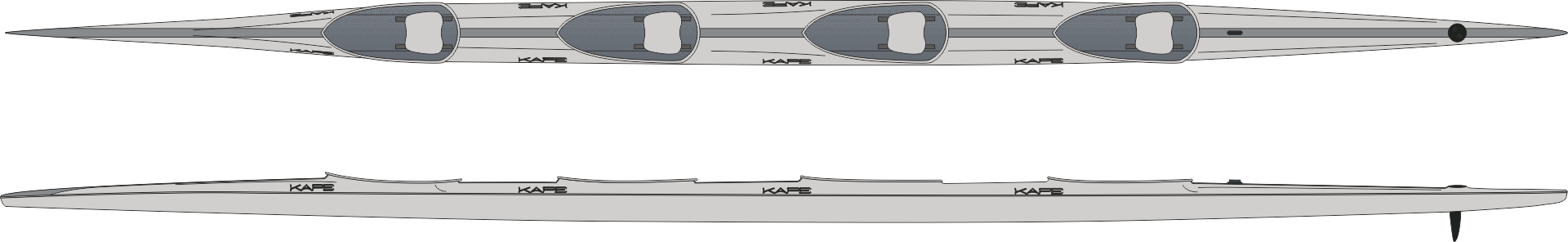

        • 0101 - PARALLEL

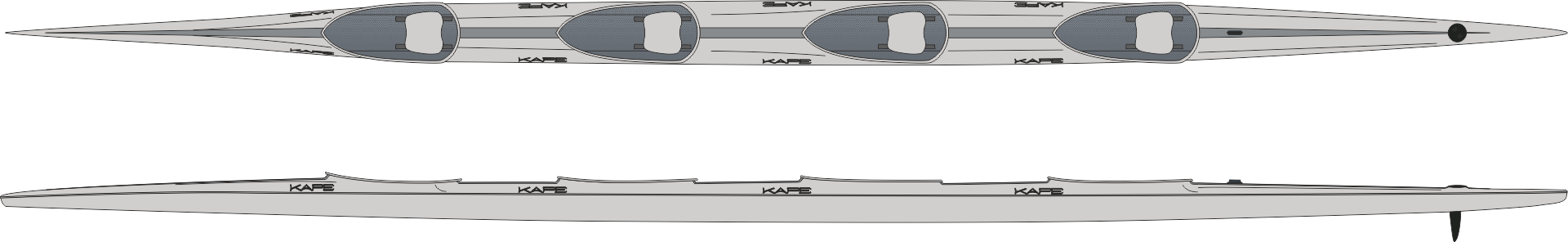

        • #0102 - POINTED

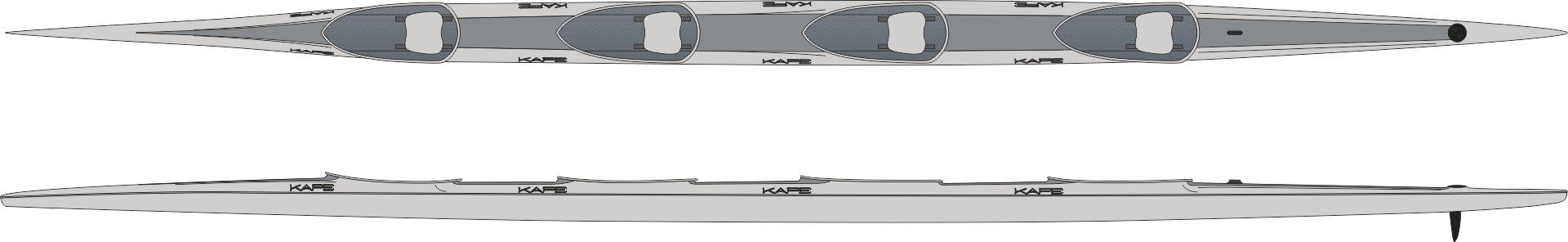

        • #0401 - CHEVRON

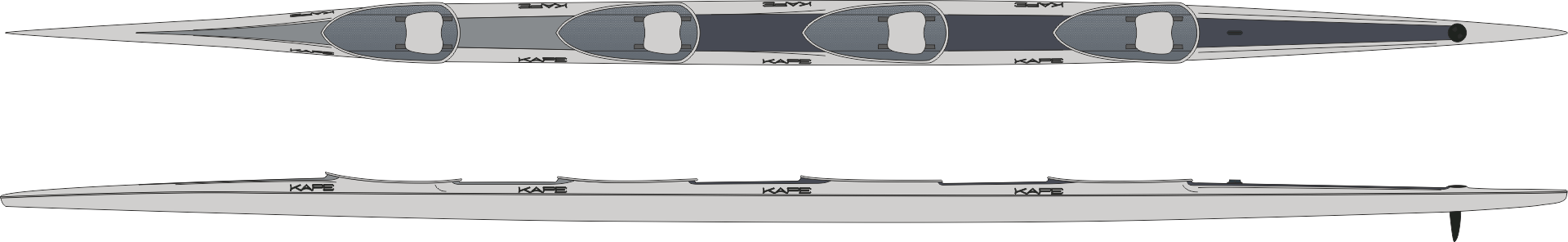

        • #0402 - CHEVRON VAR
        RAL 1001
        RAL 1001 "Beige"
        RAL 1016
        RAL 1016 "Sulfur yellow"
        RAL 1018
        RAL 1018 "Zinc yellow"
        RAL 1023
        RAL 1023 "Traffic yellow"
        RAL 2003
        RAL 2003 "Pastel orange"
        RAL 2004
        RAL 2004 "Pure orange"
        "KAPE red"
        RAL 3003
        RAL 3003 "Ruby red"
        RAL 3020
        RAL 3020 "Traffic red"
        RAL 3027
        RAL 3027 "Raspberry red"
        RAL 4003
        RAL 4003 "Heather violet"
        RAL 4004
        RAL 4004 "Claret violet"
        RAL 4005
        RAL 4005 "Blue lilac"
        RAL 4006
        RAL 4006 "Traffic purple"
        RAL 4008
        RAL 4008 "Signal violet"
        RAL 4010
        RAL 4010 "Telemagenta"
        RAL 5002
        RAL 5002 "Ultramarine blue"
        RAL 5003
        RAL 5003 "Sapphire blue"
        RAL 5005
        RAL 5005 "Signal blue"
        RAL 5010
        RAL 5010 "Gentian blue"
        RAL 5012
        RAL 5012 "Light blue
        RAL 5013
        RAL 5013 "Cobalt blue
        RAL 5015
        RAL 5015 "Sky blue
        RAL 5017
        RAL 5017 "Traffic blue
        RAL 5018
        RAL 5018 "Turquoise blue"
        RAL 5021
        RAL 5021 "Water blue"
        RAL 5023
        RAL 5023 "Distant blue"
        RAL 6001
        RAL 6001 "Emerald green"
        RAL 6018
        RAL 6018 "Yellow green"
        RAL 6019
        RAL 6019 "Pastel green"
        RAL 6026
        RAL 6026 "Opal green"
        RAL 6029
        RAL 6029 "Mint green"
        RAL 6034
        RAL 6034 "Pastel turquoise"
        RAL 7001
        RAL 7001 "Silver grey"
        RAL 7004
        RAL 7004 "Signal grey"
        RAL 7016
        RAL 7016 "Anthracite grey"
        RAL 7024
        RAL 7024 "Graphite grey"
        RAL 7033
        RAL 7033 "Cement grey"
        RAL 7037
        RAL 7037 "Dusty grey"
        RAL 7047
        RAL 7047 "Telegrey 4"
        RAL 9010
        RAL 9010 "Pure white"
        RAL 9017
        RAL 9017 "Traffic black"
        Clear carbon (limited availability)
        Clear carbon (limited availability)

        Tips & more about the available colours


        Think carefully about choosing black and dark colours!

        Such boats warm up more & they become matt very soon. Scratches and limescale are also much more visible on these surfaces.

        Less is more:

        We recommend picking only two, maximum three colours for a coherent boat design.

        More is more:

        (Because of the overlapping gelcoat layers) more colours results in more weight.


        Availability of clear (transparent) surfaces:

        Clear carbon seats & cockpit rims are available.

        Clear carbon hull and/or deck are not available.


        RAL colors CANNOT be displayed entirely proper on computer screens. The color depends on your monitor and printer. Therefore the exact shade of the product may be different than seen here! Please use these color samples as a reference only! We recommend you to see a physical and official RAL color guide to be sure of the correct color.

        FITTINGS

        Standard Choice

        S111
        Racing Seat
        F111
        Full & Adjustable Angle Footrest
        FP1
        Velcro Foot Strap
        FT111
        Traction Pad for Footrest
        R114
        Racing Rudder
        M12
        Number Holder

        Available at no extra charge

        S112
        High Back Racing Seat

        Available for extra charge

        FP2
        Pull bar
        S113
        Rotoseat

        Find a dealer!

        Our distributor partners from all over the world are happy to help you to get your boat as soon as possible. Find your nearest KAPE dealer!
        If you cannot find a dealer in your country, please contact us directly using the form below!
