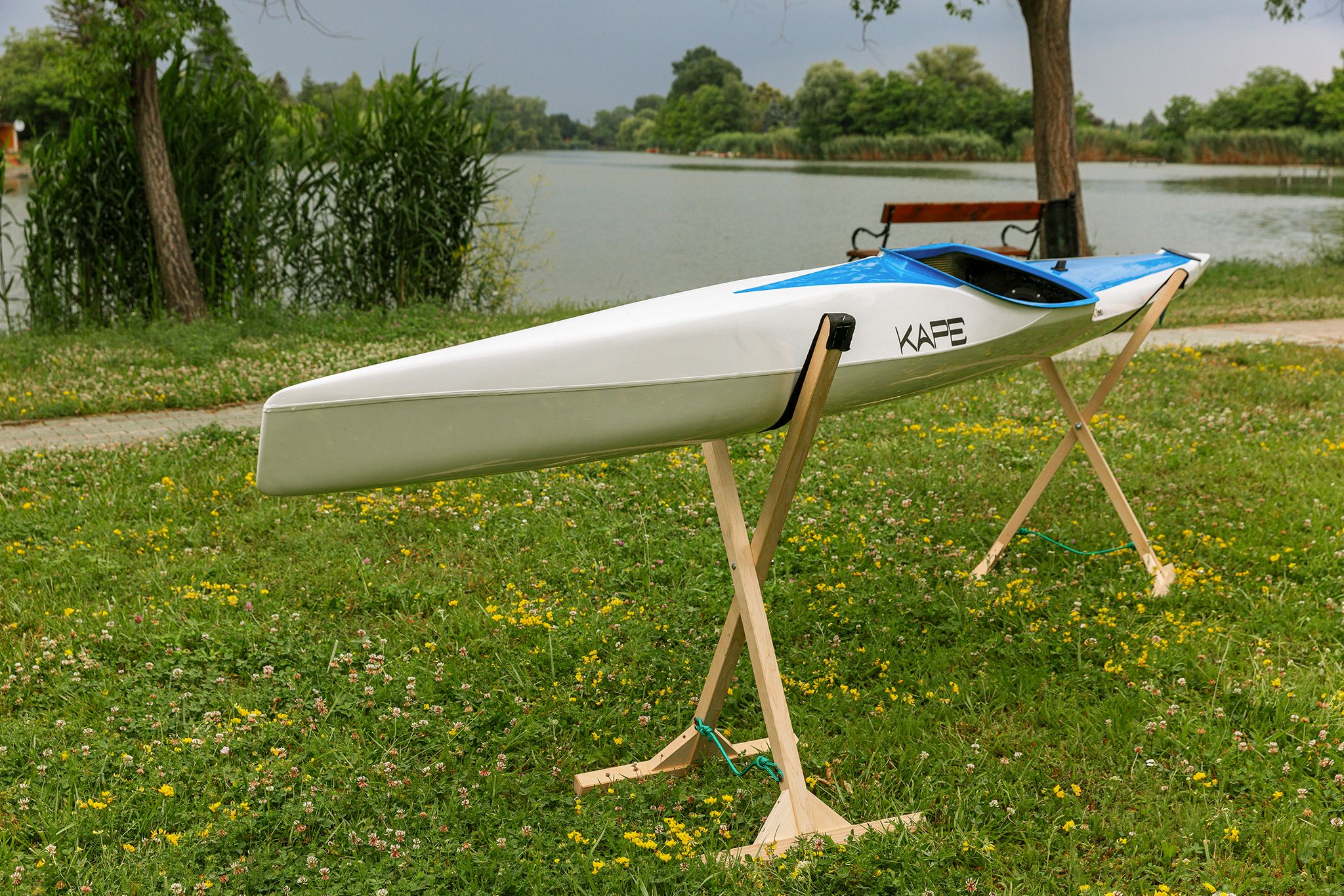

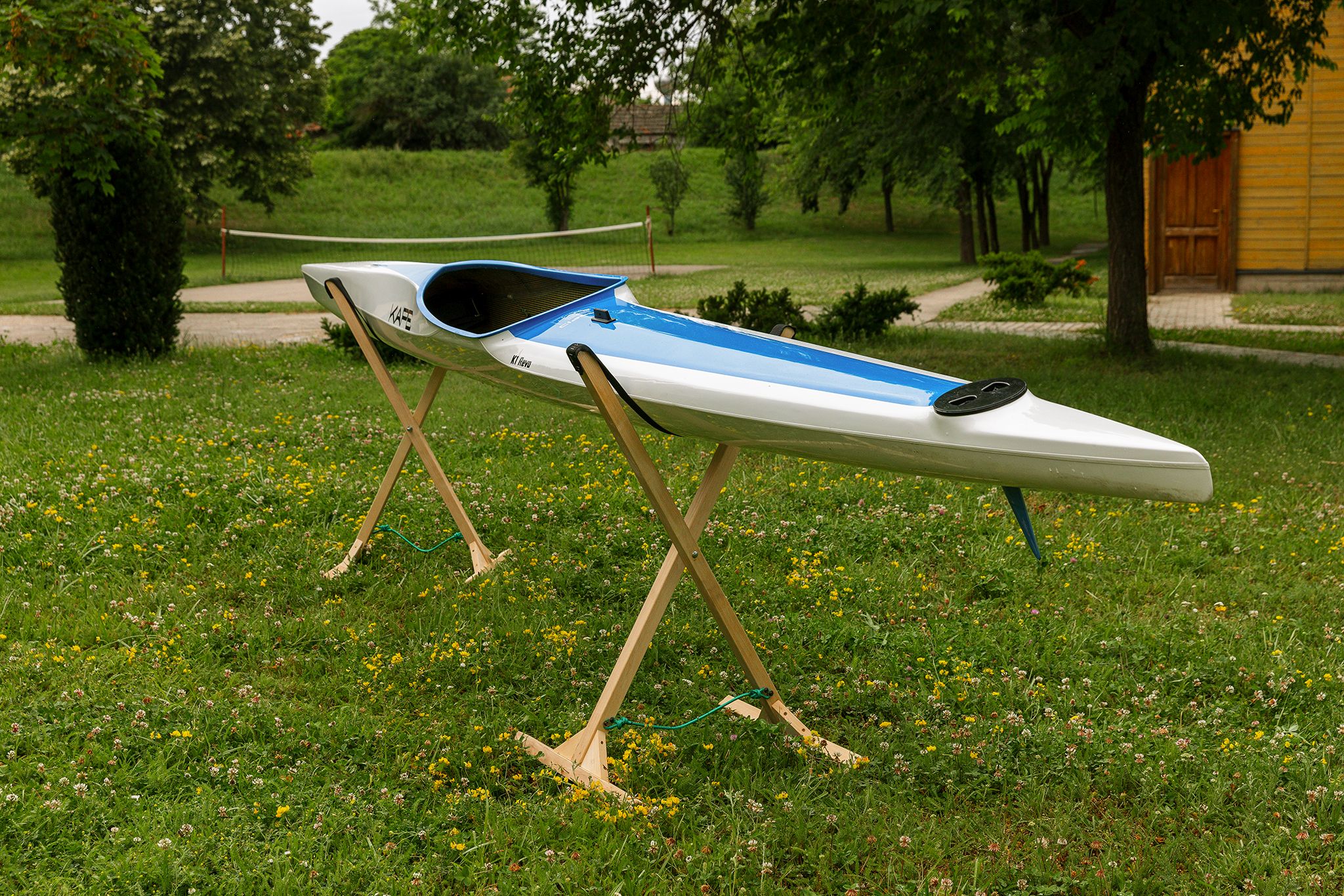

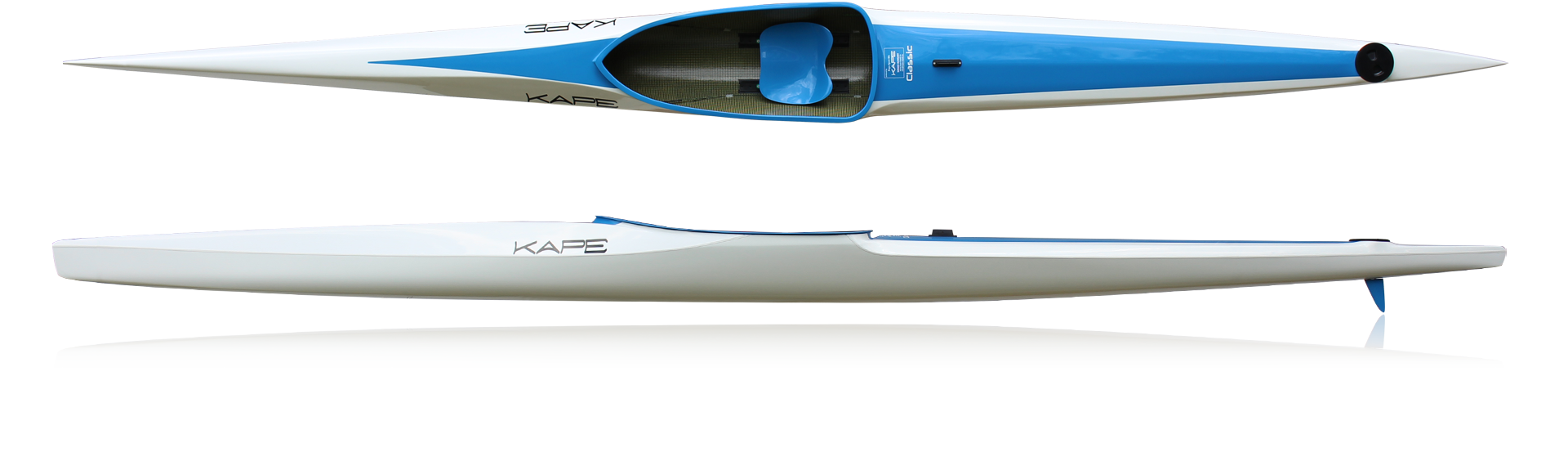

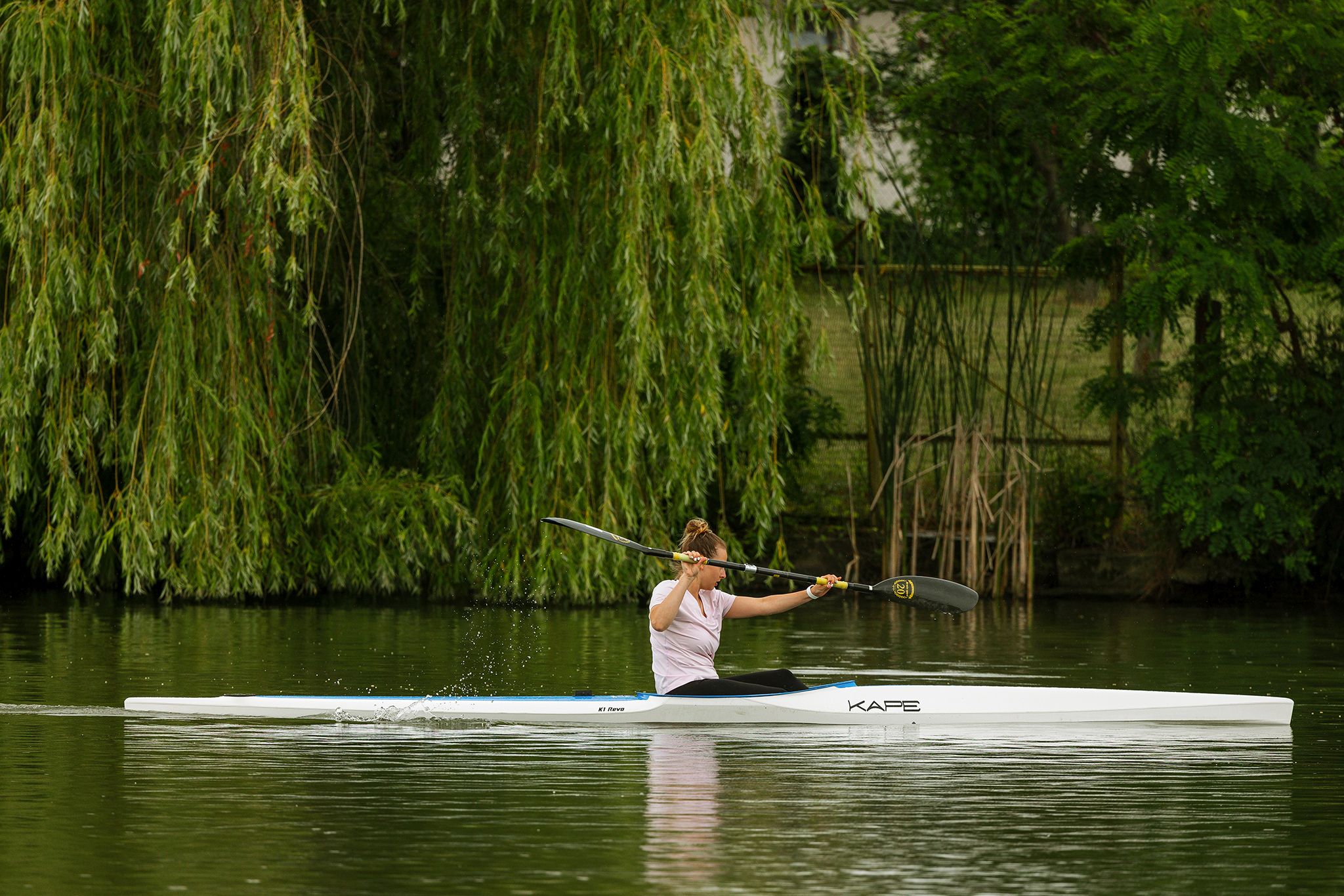

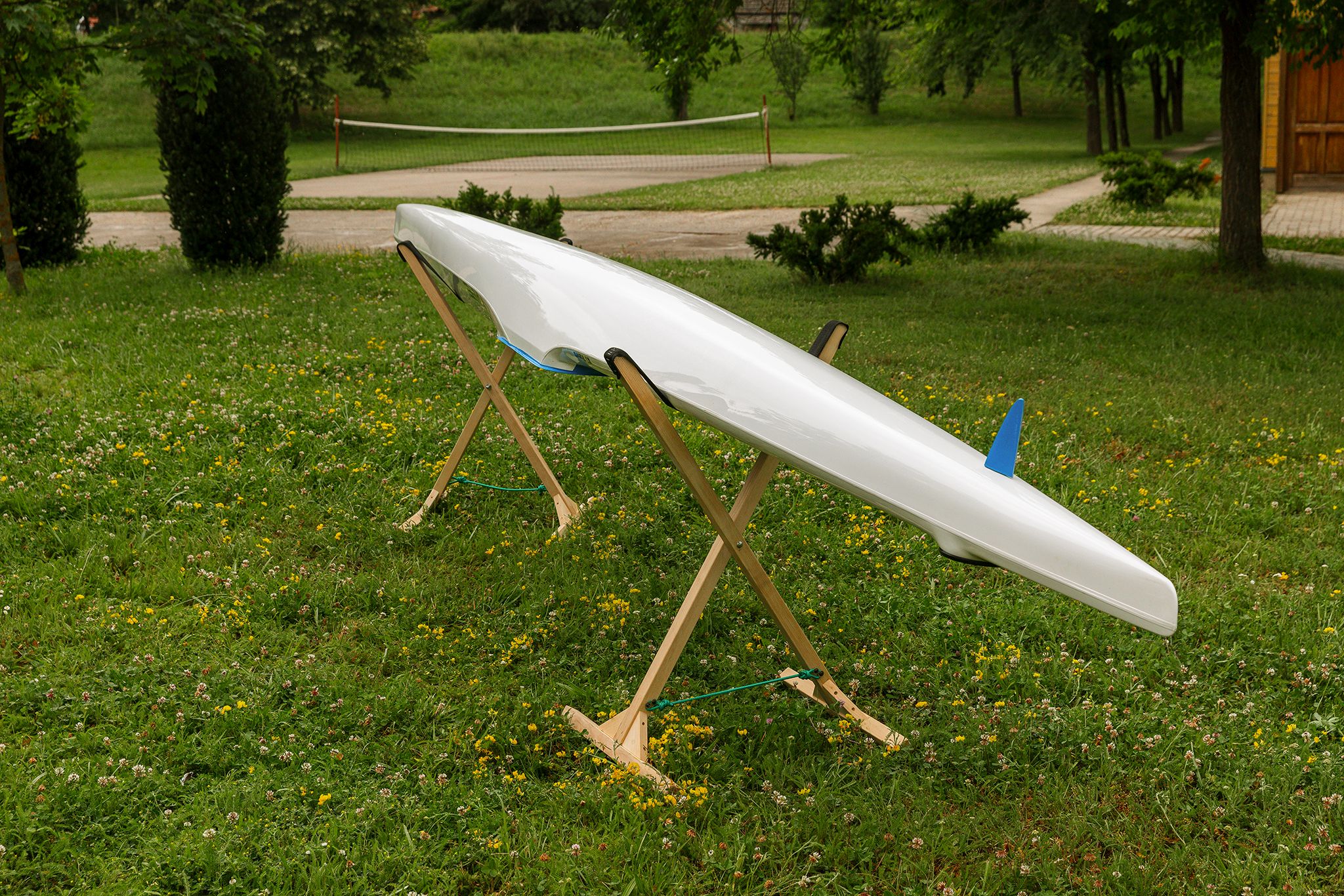

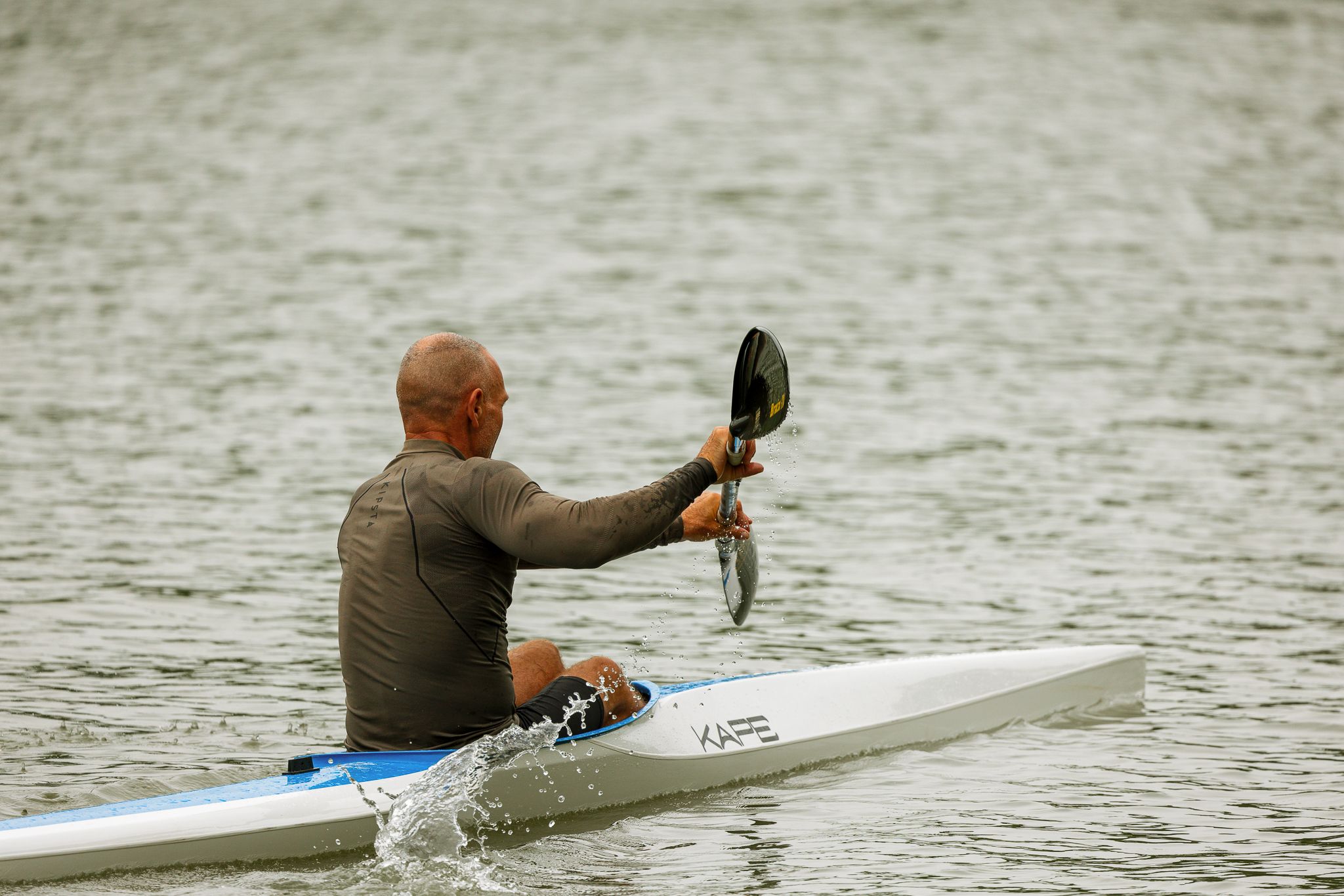

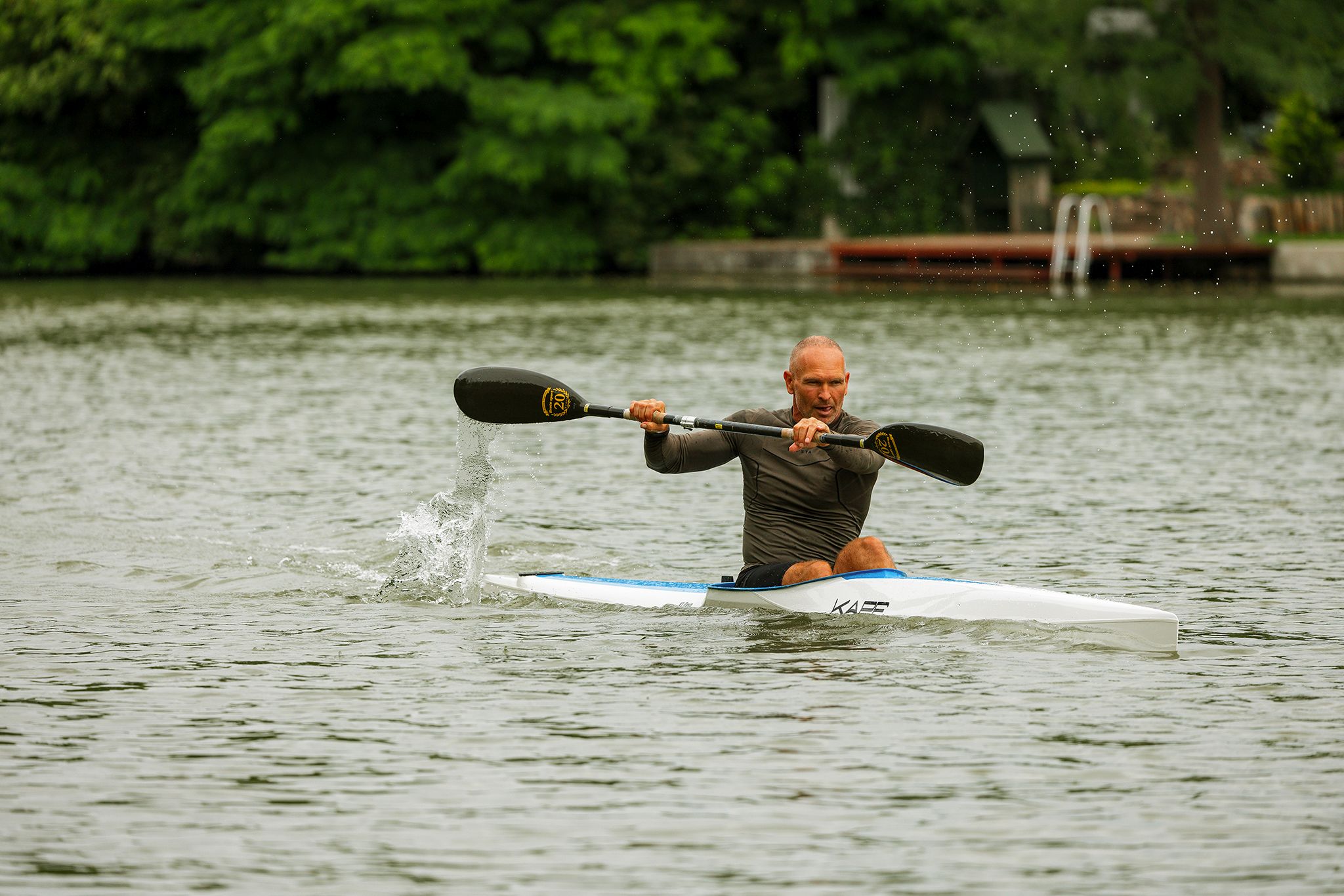

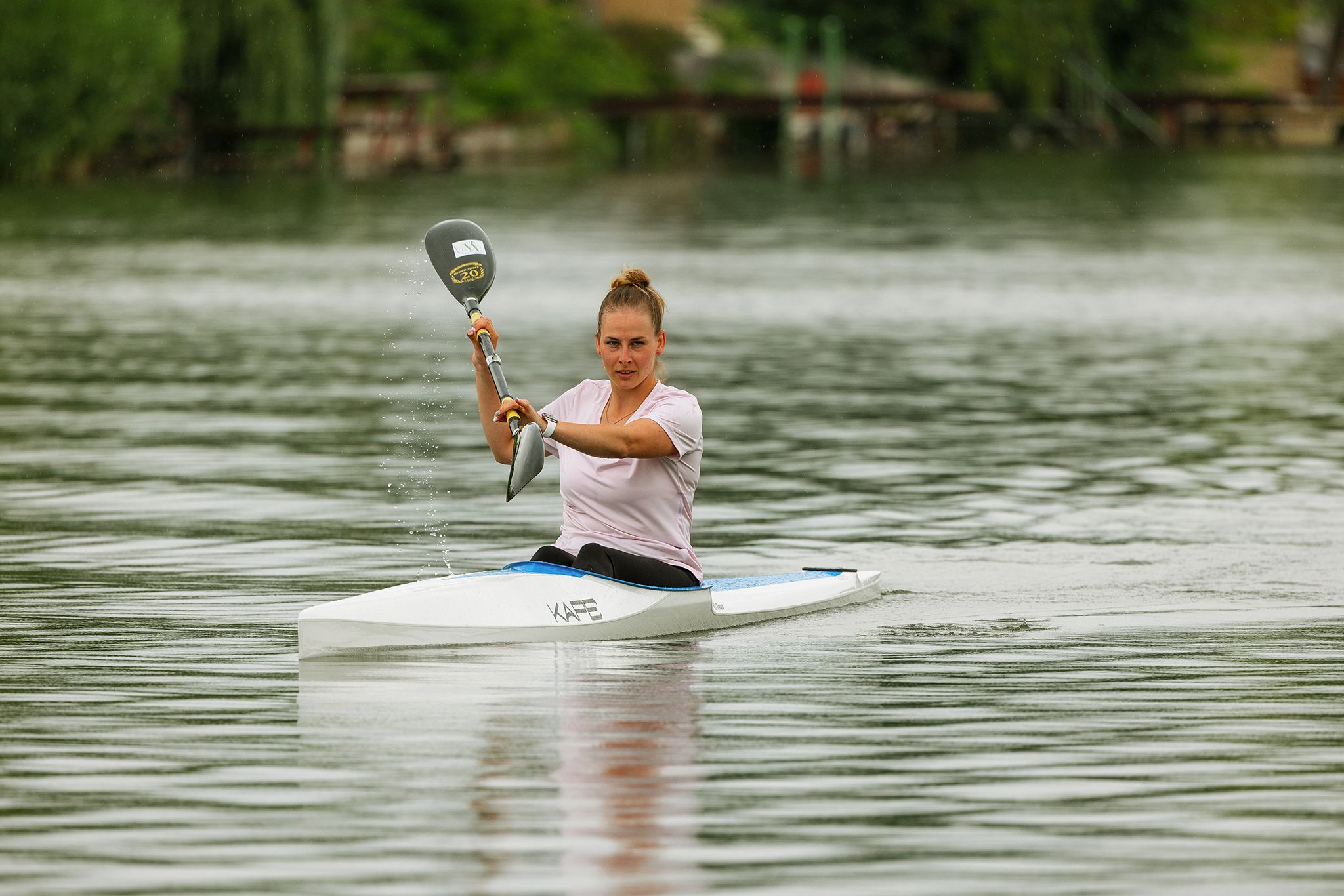

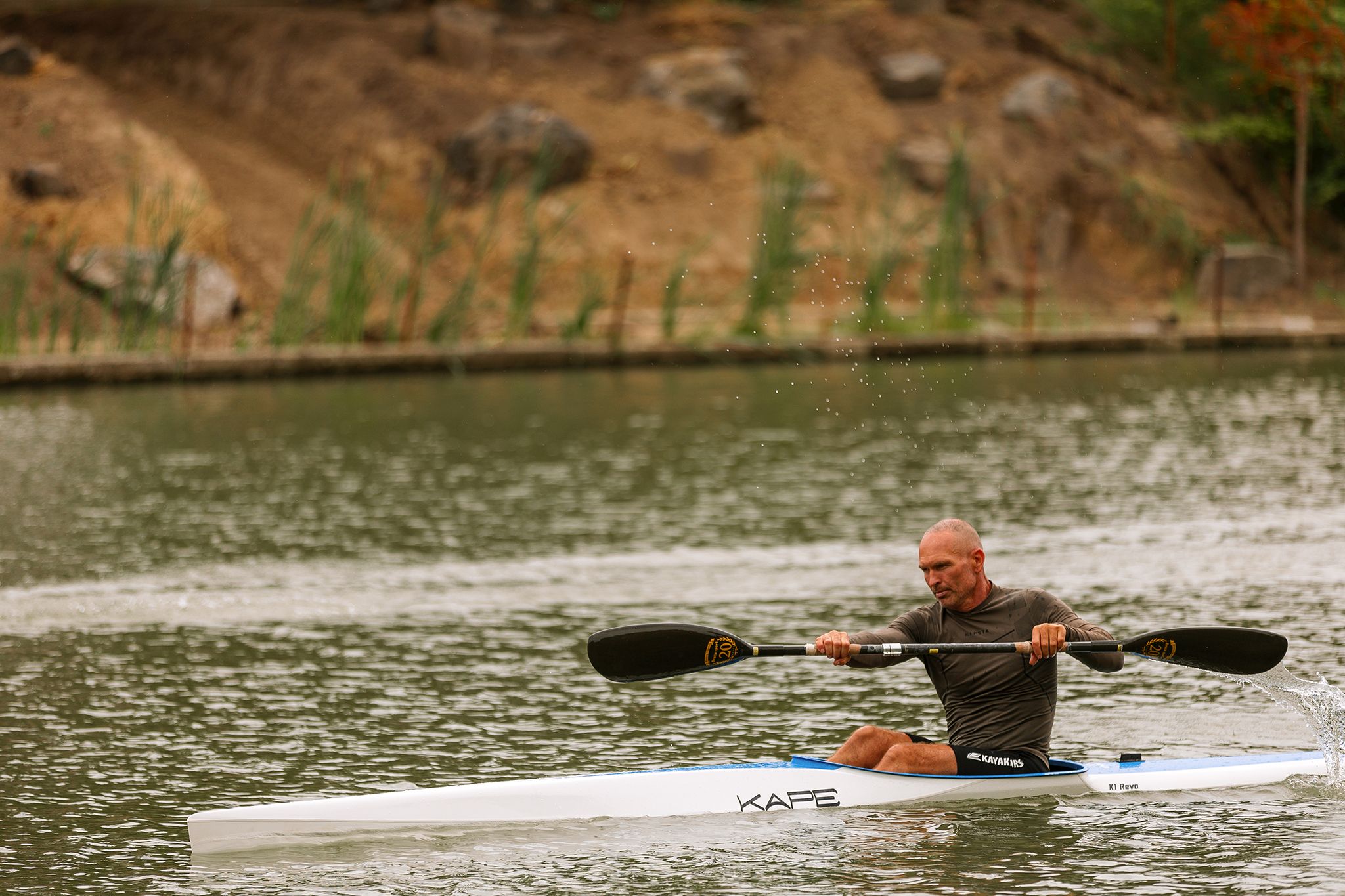

K1 Revo 40

racing kayak with more stability

Our in-house designed performance K1 model with classic V-shape hull, just a bit more stability & more rocker for youth & marathon paddlers

The K1 Revo 40 has a modern deck & a traditional hull design, but with slightly rounded center section and more rocker. It is a great choice for clubs and individals to start K1 paddling & for balance trainging. Because of the bigger cockpit size, ample rocker and maneuverability it is also highly recommended for marathon use.

In terms of both stability, maneuverability and top speed the K1 resembles the top racing K1's from the 2000's.

  • Athlete weight

    55 - 80 kg

  • Length

    520 cm
  • Width

    40 cm
  • Stability level

    2/10
  • Boat weight

    12 kg
  • Cockpit size

    97 x 38 cm
  • 01

  • 02

  • 03

  • 04

  • 05

  • 06

  • 07

  • 08

  • 09

  • 10

  • 11

  • 12

  • 13

  • 14

  • 16

Features & fittings

High performance footrest with foot strap & traction pad

The footrest is the key & ultimate outfitting of your kayak. It is the main contact point between your lower body and your boat. It transfers the energy generated from your paddle strokes into the forward movement of your kayak through your foot & leg drive. So it has to be solid, reliable and personalized.

We have an advanced & customizable full footrest system adjustable in angle and depth. It is equipped with adjustable foot strap & covered with EVA traction pad for non-slip and increased comfort.

Ergo seat for optimal hip movement

    The racing seat is configurable in different heights and angle positions for paddling at your most comfortable sitting position while ensuring optimal hip movement as well.

    Alternatively the high back racing seat is for athletes looking for a better grip on the back

    Sprint rudder

      High performance rudder made of carbon with minimum drag ideal for sprint use

      A specific stainless, low profile marathon rudder against weed and impacts is also available.

      Note: rudder shaft (and rudder tube inner) diameter of our racing kayaks is 6mm.

      Bulkhead available

      A bulkhead (partition) is an upright wall within boat separating watertight compartments so that the capsized boat does not sink. A hatch is placed in the rear bulkhead, mainly to let the rear compartment to dry when not in use and to ventilate the stored boat.

      Bulkheads are not installed in flat water racing kayaks as standard, but rear bulkhead can be installed on request if the boat is for club use and will be used by beginners or unstable paddlers.

      CONSTRUCTIONS
      To let us meet the preferences of a wide range of paddlers we offer multiple constructions to choose from. These constructions are set up in line with the requirements of each segment of the flatwater racing market - from youth paddlers to top-ranking athletes, from local clubs to federations - while providing the most favourable quality and price conditions for that specific group of users.

      More about constructions

      Constructions differ in the materials and technologies used during the manufacturing process. These determine the stiffness and the interior appearance of the boat. In practice, an upper construction results a stiffer & more eye-catching boat.

      Besides, the standard and available fittings may be also different in some constructions. These are listed at the "Fittings" section of this article.


      • CLASSIC

        Basic constrution for CLUB USE


        Sandwich core material


        Carbon inlay


        Vinyl ester resin


        Vacuum bagging (hull)


        Hand lay-up (deck)


        Stiffness

      • EXTRA

        Economy carbon constrution for SPRINT TRAINING


        Sandwich core material


        Carbon reinforcement
        (Clear carbon available)


        Vinyl ester resin


        Vacuum bagging


        Stiffness

      • ULTRA

        High performance full carbon constrution for SPRINT RACING


        Foam core material


        Double carbon reinforcement
        (Clear carbon included)


        Vinyl ester resin


        Vacuum bagging


        Stiffness


      Design & colour customisation

      All boats are made to order. You can choose your preferred colour(s) of the hull, the deck areas, the trim (seam between deck & hull), the cockpit rim (coaming) and the seat.

      These deck designs are available in all constructions:

      • #0000 - MONO
      • #0101 - PARALLEL
      • #0201 - POINTED
      • #0301 - SLIM
      • #0302 - SLIM DOUBLE
      • #0303 - SLIM WING
      • #0401 - CHEVRON
      • #0402 - CHEVRON VAR
      • #0403 - CHEVRON DOUBLE
      • #0404 - CHEVRON WING
      • #0405 - CHEVRON WING VAR
      • #0406 - CHEVRON POINTED
      • #0501 - ZIG
      • #0502 - ZIG-ZAG
      • #0503 - ZIG-ZIG-ZAG-ZAG
      • #0504 - ZIG-ZAG-ZAG-ZIG
      • #0601 - NOSE-TAIL
      RAL 1001
      RAL 1001 "Beige"
      RAL 1016
      RAL 1016 "Sulfur yellow"
      RAL 1018
      RAL 1018 "Zinc yellow"
      RAL 1023
      RAL 1023 "Traffic yellow"
      RAL 2003
      RAL 2003 "Pastel orange"
      RAL 2004
      RAL 2004 "Pure orange"
      "KAPE red"
      RAL 3003
      RAL 3003 "Ruby red"
      RAL 3020
      RAL 3020 "Traffic red"
      RAL 3027
      RAL 3027 "Raspberry red"
      RAL 4003
      RAL 4003 "Heather violet"
      RAL 4004
      RAL 4004 "Claret violet"
      RAL 4005
      RAL 4005 "Blue lilac"
      RAL 4006
      RAL 4006 "Traffic purple"
      RAL 4008
      RAL 4008 "Signal violet"
      RAL 4010
      RAL 4010 "Telemagenta"
      RAL 5002
      RAL 5002 "Ultramarine blue"
      RAL 5003
      RAL 5003 "Sapphire blue"
      RAL 5005
      RAL 5005 "Signal blue"
      RAL 5010
      RAL 5010 "Gentian blue"
      RAL 5012
      RAL 5012 "Light blue
      RAL 5013
      RAL 5013 "Cobalt blue
      RAL 5015
      RAL 5015 "Sky blue
      RAL 5017
      RAL 5017 "Traffic blue
      RAL 5018
      RAL 5018 "Turquoise blue"
      RAL 5021
      RAL 5021 "Water blue"
      RAL 5023
      RAL 5023 "Distant blue"
      RAL 6001
      RAL 6001 "Emerald green"
      RAL 6018
      RAL 6018 "Yellow green"
      RAL 6019
      RAL 6019 "Pastel green"
      RAL 6026
      RAL 6026 "Opal green"
      RAL 6029
      RAL 6029 "Mint green"
      RAL 6034
      RAL 6034 "Pastel turquoise"
      RAL 7001
      RAL 7001 "Silver grey"
      RAL 7004
      RAL 7004 "Signal grey"
      RAL 7016
      RAL 7016 "Anthracite grey"
      RAL 7024
      RAL 7024 "Graphite grey"
      RAL 7033
      RAL 7033 "Cement grey"
      RAL 7037
      RAL 7037 "Dusty grey"
      RAL 7047
      RAL 7047 "Telegrey 4"
      RAL 9010
      RAL 9010 "Pure white"
      RAL 9017
      RAL 9017 "Traffic black"
      Clear carbon (limited availability)
      Clear carbon (limited availability)

      Tips & more about the available colours


      Think carefully about choosing black and dark colours!

      Such boats warm up more & they become matt very soon. Scratches and limescale are also much more visible on these surfaces.

      Less is more:

      We recommend picking only two, maximum three colours for a coherent boat design.

      More is more:

      (Because of the overlapping gelcoat layers) more colours results in more weight.


      Availability of clear (transparent) surfaces:

      Clear carbon seat & cockpit rim are available in EXTRA & ULTRA constructions.

      Clear carbon hull and/or deck (parts) are available in EXTRA & ULTRA constructions.
      (Bow & stern of the clear carbon boat are black gradient)

      Clear carbon-kevlar hull is available in SUPER construction.
      (Bow & stern of the clear carbon-kevlar boat hulls are colored)


      RAL colors CANNOT be displayed entirely proper on computer screens. The color depends on your monitor and printer. Therefore the exact shade of the product may be different than seen here! Please use these color samples as a reference only! We recommend you to see a physical and official RAL color guide to be sure of the correct color.

      FITTINGS

      Standard Choice

      F111
      Full & Adjustable Angle Footrest
      S111
      Racing Seat
      R111
      Racing Rudder
      M12
      Number Holder

      Available at no extra charge

      S112
      High Back Racing Seat
      R121
      Stainless Marathon Rudder

      Available for extra charge

      +R1X1
      Spare Part: Racing or Stainless Marathon Rudder
