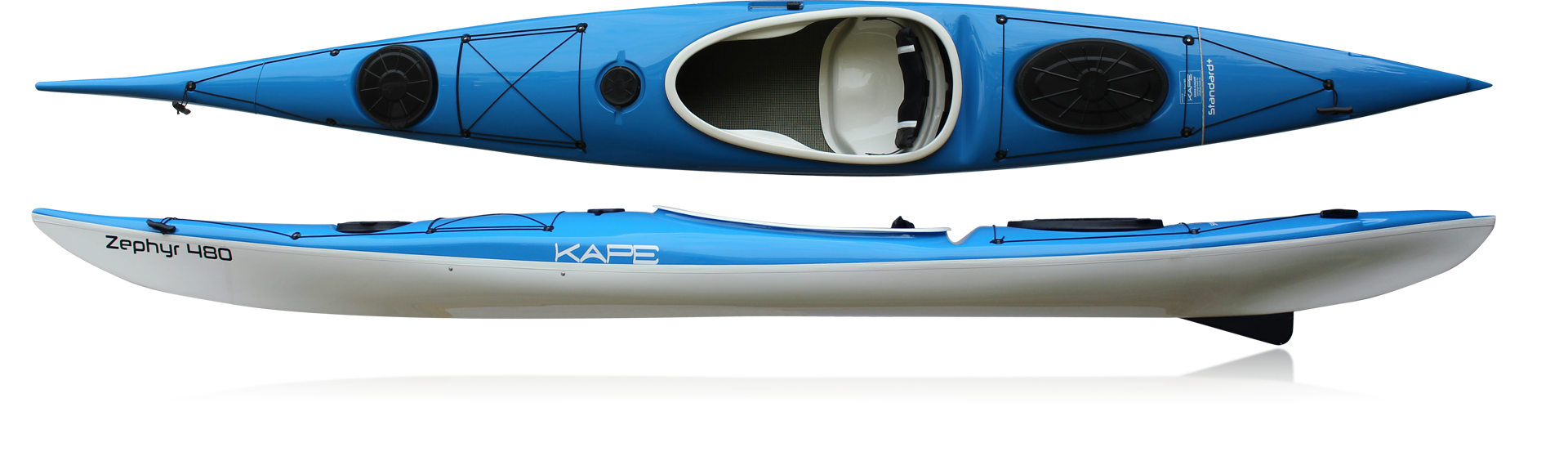

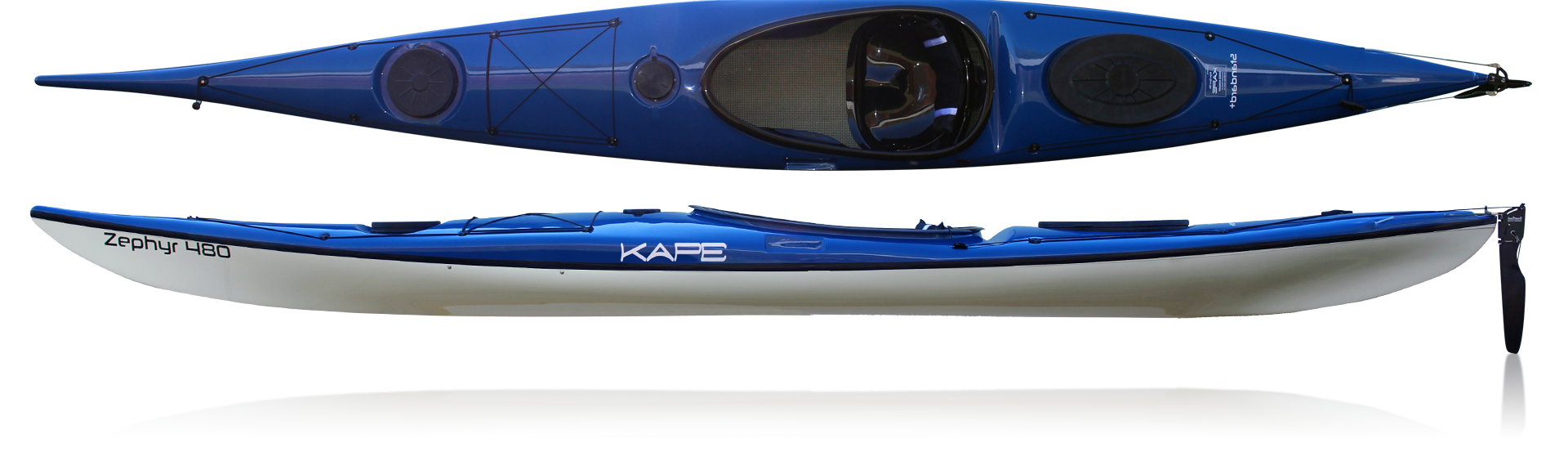

KAPE Zephyr 480

Entry-level touring sea kayak

Entry-level touring sea kayak for shorter coastal trips, flat water and light river touring. For those who are looking for a safe but enjoyable kayak to start paddle with.
With the “gateway” length (480 cm) for proper composite sea kayaks, the Zephyr 480 is for those who want a bit of everything. Long enough to have the speed to keep pace with any group and carry a load when required. Still short enough to be easily maneuvered and managed, especially off the water. It can be easily transported and stored. The boat has good stability & maneuverability. The big cockpit size allows an easy entry and exit. So the Zephyr 480 has everything that is needed for a safe but fun entry-level sea kayak.

  • Length

    480 cm

  • Width

    54 cm

  • Stability level

    9/10

  • Boat weight

    Standard: 23 kg / Standard+: 22 kg / Super, Extra: 20 kg / Premium: 21 kg
    (Specified weights are valid for standard fittings. They are approximate and may vary by ± 5% due to manual production.)

  • Cockpit size

    88 x 43 cm

  • Hatch sizes

    Day hatch: 10 cm
    Front hatch: 24 cm
    Rear hatch: 44 x 26 cm

  • 01

  • 02

  • 03

  • 04

  • 05

  • 06

  • 07

Features & fittings

Seat

A hajót masszív, a lehetőségekhez képest kényelmes üléssel szereljük, amihez háttámlát rögzítünk.

Backrest

Alapfelszereltségként kényelmes, jó támasztást biztosító, merev, párnázott háttámasszal szereljük a hajót.

Választható a hevederrel rögzített, habszivacs háttámasz-változat is, mely szabadabb mozgást biztosít a törzsnek. Ez élezéskor vagy eszkimózásál praktikus.

SmartTrack rudder & pedals

A hajó alapfelszereltsége a "SmartTrack" farkormány. A farkormány "felbillenő", illetve a beülő mellett elhelyezett zsinór segítségével vízszintes helyzetbe felhúzva rögzíthető.

A kormányzás alapfelszereltség szerint kétoldali "SmartTrack" kormánypedállal, a lábfejünk segítségével történik. Ennek távolsága nagy tartományban, a hajóban ülve is állítható. Ez a pedáltípus a hajó belső oldalfalaira rögzített, így szűk terpeszben, a térdünket a beülő alján megtámasztva tudunk kényelmesen kajakozni. Pihenéskor lábunkat összezárva kinyújhatjuk azt.

Available with a retractable skeg

A high quality retractable skeg is available to chose instead of (or together with) rudder. It increases the tracking efficiency of the boat and helps it to resist weathercocking (turning into the wind) in a crosswinds

Compartments, hatches & deckfittings

A hajó három tárolórekesszel rendelkezik, amiket jól záró deklik fednek. Az elülső és hátsó tárolórekeszekben akár több napos túrázásokhoz szükséges felszerelést is magunkkal vihetünk, ami egyenletesen elosztható a hajóban. A kézközelben lévő "napi" tároló telefon vagy kulcs praktikus tárolásra szolgál.

A kajak deck része gumikötélzettel jól felszerelt, amik a deckbe süllyesztett kötélvezetőkön haladnak át. A kajak elején és hátulján a könnyű szállítást segítő fogantyúk találhatók.

CONSTRUCTIONS
To let us meet the preferences of a wide range of paddlers we offer multiple constructions to choose from. These constructions are set up in line with the requirements of each segment of the recreational market - from rentals, clubs & hobbyists to expedition paddlers - while providing the most favourable quality and price conditions for that specific group of users.

More about constructions

Constructions differ in the materials and technologies used during the manufacturing process. These determine the stiffness, the weight and the interior appearance of the boat. In practice, an upper construction results a stiffer, more lightweight & spectacular boat, but it requires more caution during use

Besides, the standard and available fittings may be also different in some constructions. These are listed at the "Fittings" section of this article.

  • STANDARD

    Entry-level composite (GFRP) boats for hobby & recreational use or rentals. Long life, easy to maintain and repair. A no frills offer for the budget-conscious who are just looking for a reliable kayak.

    ease of handling
    easy to repair
    heavy weight
    flexible hull


    Single skin:
    woven fiberglass and choppend strand mat


    Polyester resin


    Hand lay-up


    Weight


    Stiffness

  • STANDARD+

    Additional carbon-kevlar reinforcement provides some extra stiffness. Still they are easy to maintain and repair. Good value for money offer for hobby and recreational paddlers and for heavy-duty use.

    ease of handling
    easy to repair
    more stiff hull
    heavy weight


    Single skin:
    woven fiberglass and choppend strand mat


    Carbon-kevlar reinforcement


    Polyester resin


    Hand lay-up


    Weight


    Stiffness

  • SUPER

    More rigid and lighter sandwich cored boats with hibrid reinforcement and advanced manufacturing technologies. Carbon-kevlar reinforcement offers a good trade-off between reduced weight, improved stiffness and impact resistance.
    For fast touring, long distance river paddling & for experienced paddlers in extreme conditions.

    stiff hull
    lighter weight
    clear carbon-kevlar hull
    moderately fragile
    limited repairability


    Sandwich core material


    Carbon-kevlar reinforcement
    (clear surface available)


    Vinyl ester resin


    Vacuum bagging


    Weight


    Stiffness

  • EXTRA

    More rigid, lighter and good looking sandwich cored boats with carbon reinforcement and advanced manufacturing technologies to reduce weight and improve stiffness. For sports & active recreation, mostly for flat water.

    stiff hull
    lighter weight
    clear carbon hull
    more fragile
    limited repairability


    Sandwich core material


    Carbon reinforcement
    (clear surface available)


    Vinyl ester resin


    Vacuum bagging


    Weight


    Stiffness

  • ULTRA

    High performance carbon construction with outstanding stiffness. Recommended for competitors, athletes and true paddling enthusiasts.

    ultra stiff hull
    lighter weight
    clear carbon hull
    less fragile


    Foam core material


    Double carbon reinforcement
    (Clear surface available)


    Epoxy-vinyl ester resin


    Vacuum bagging


    Weight


    Stiffness

Design & colour customisation

All boats are made to order. You can choose your preferred colour(s) of the hull, the deck areas, the trim (seam between deck & hull), the cockpit rim (coaming) and the seat.

These deck designs are available in all constructions:

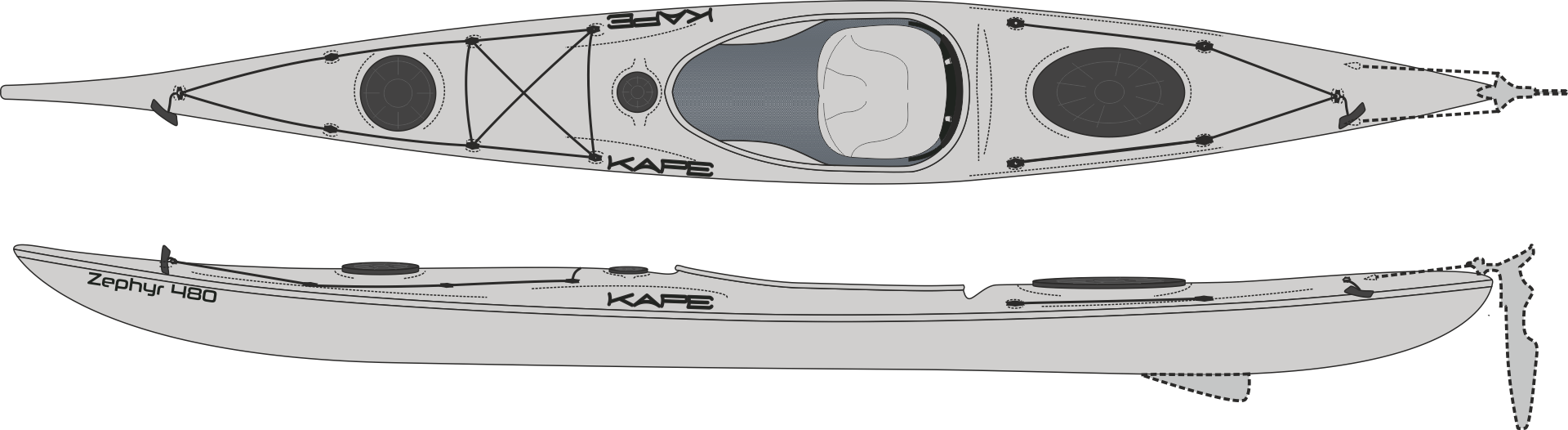

  • #0000 - MONO

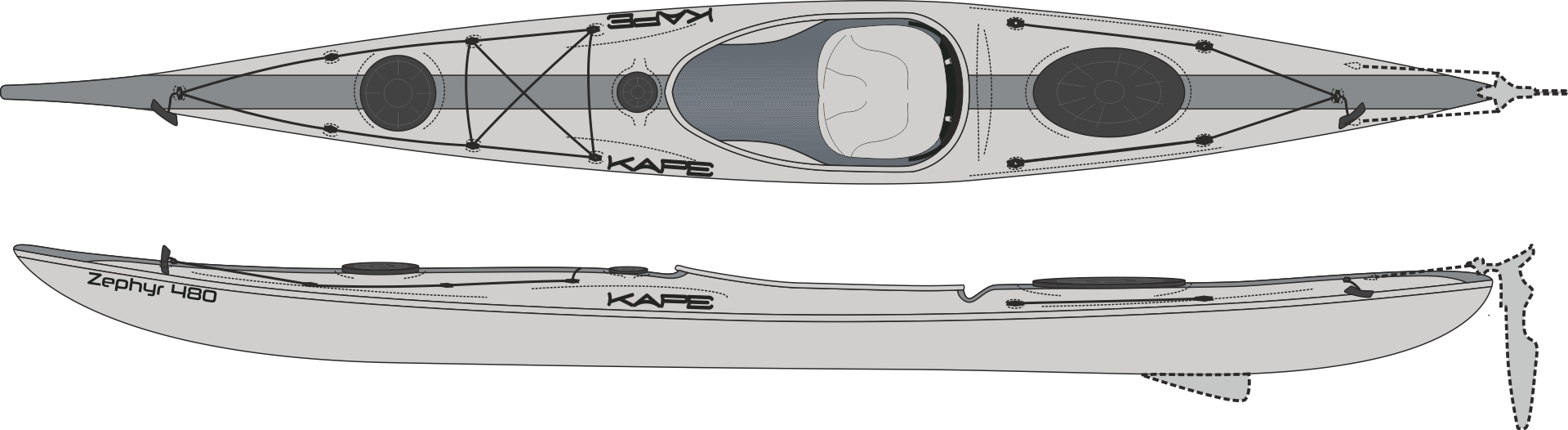

  • #0101 - PARALLEL

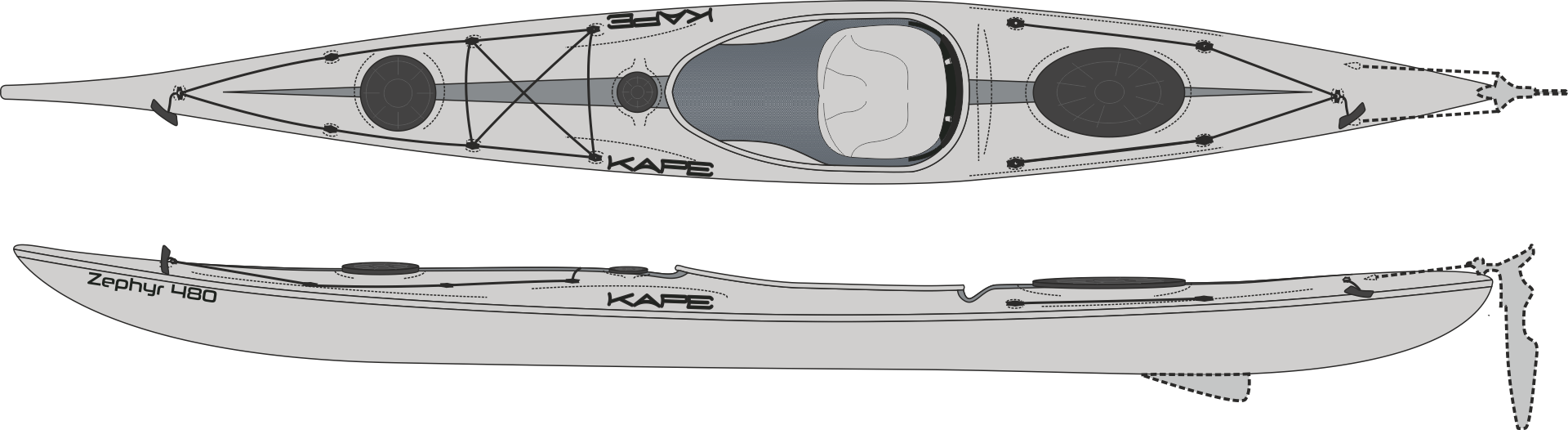

  • #0201 - POINTED

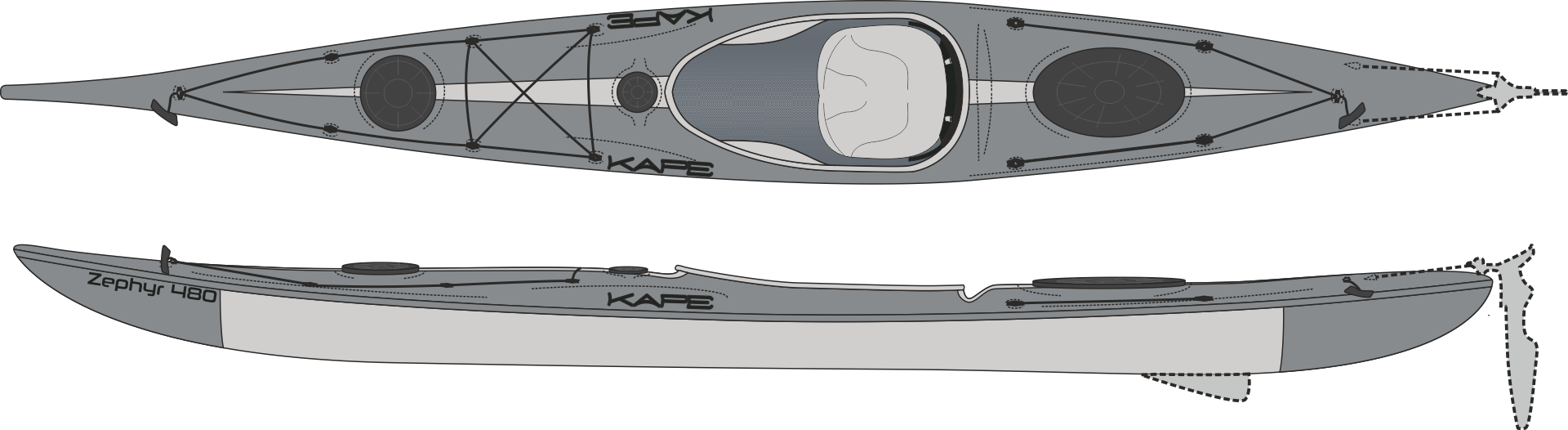

  • #0201-02 - POINTED BULLET

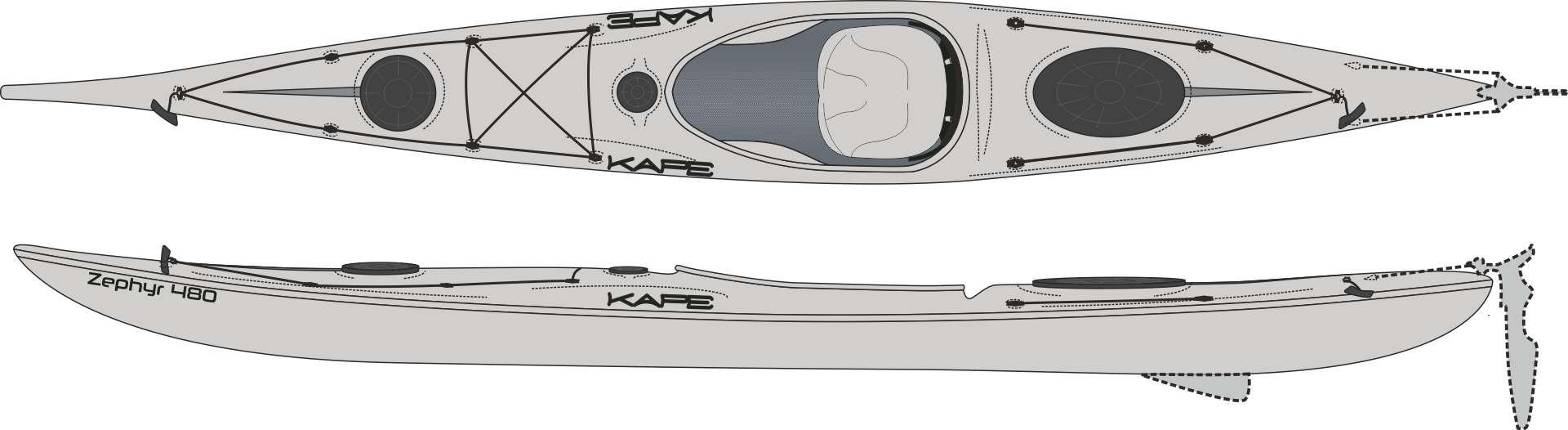

  • #0202 - POINTED HALF

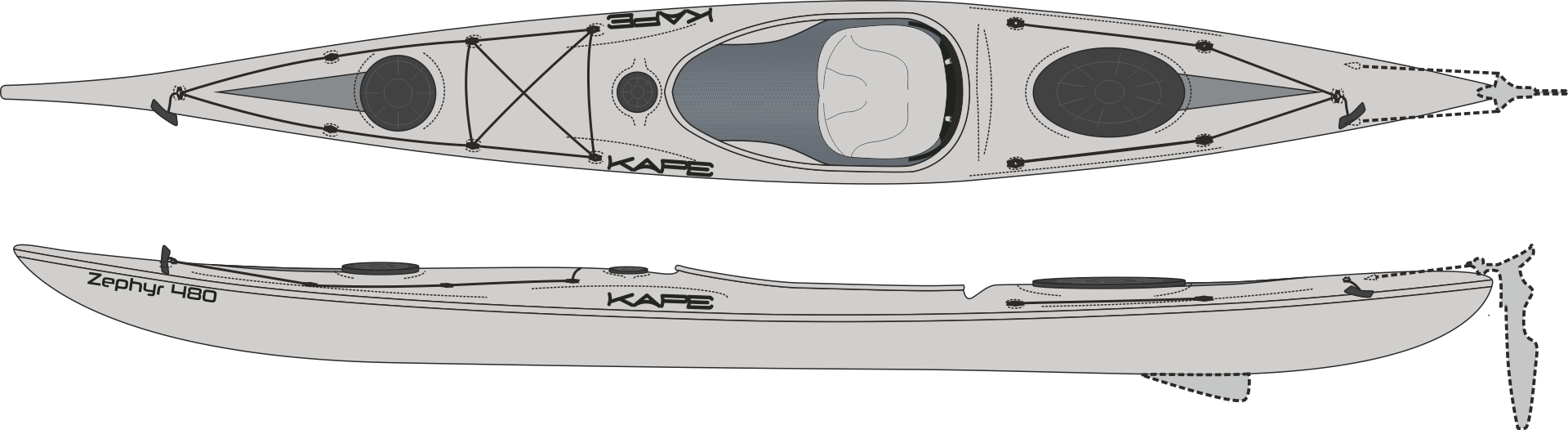

  • #0301 - DEFLECTOR

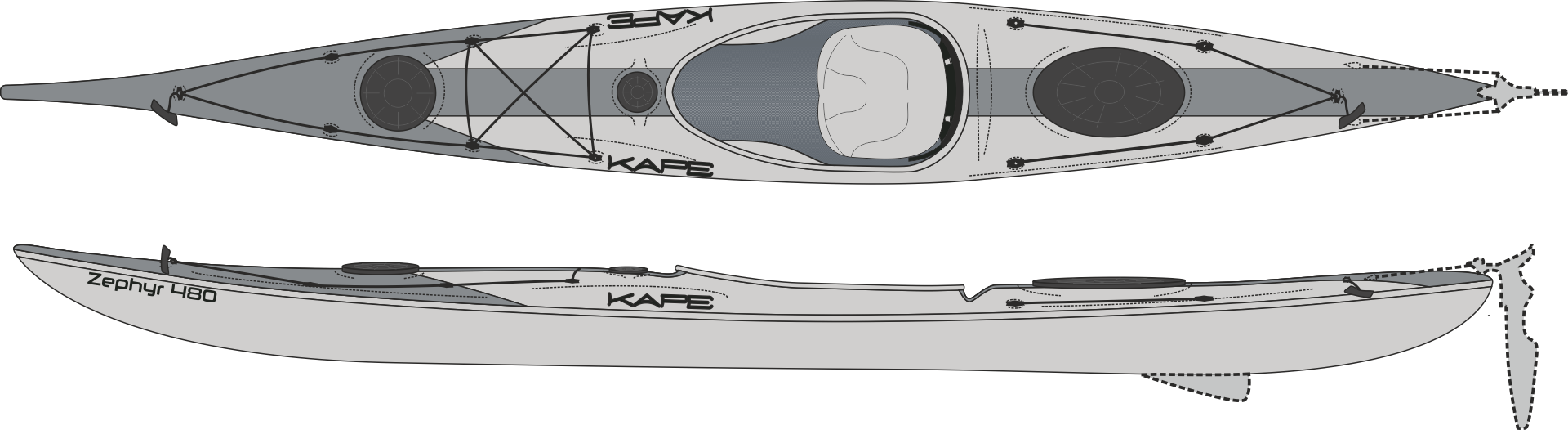

  • #0401 - ARROW

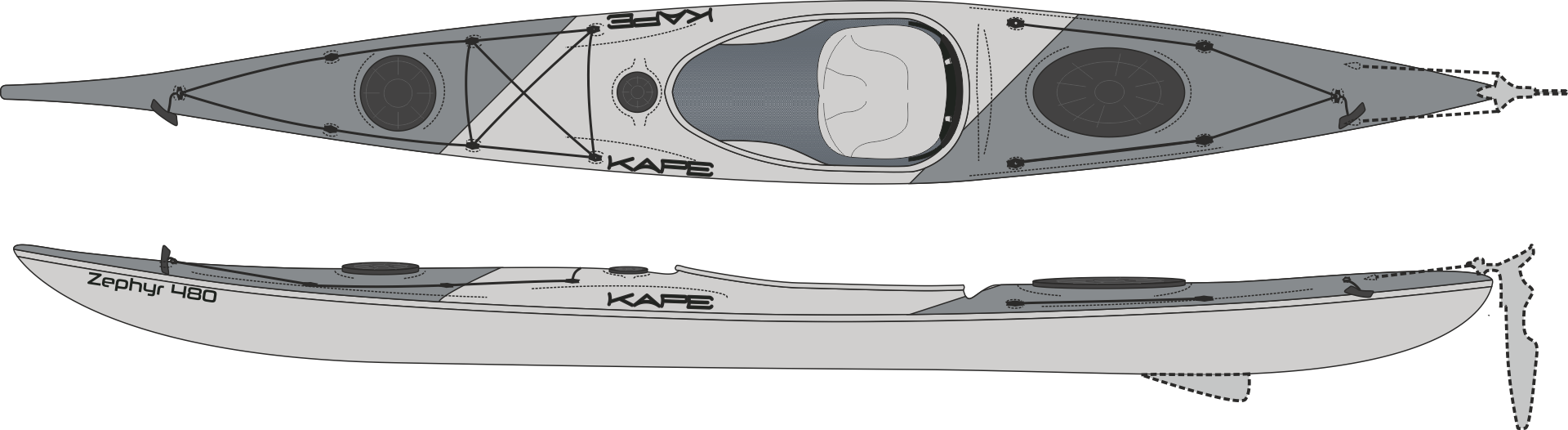

  • #0501 - ZIG

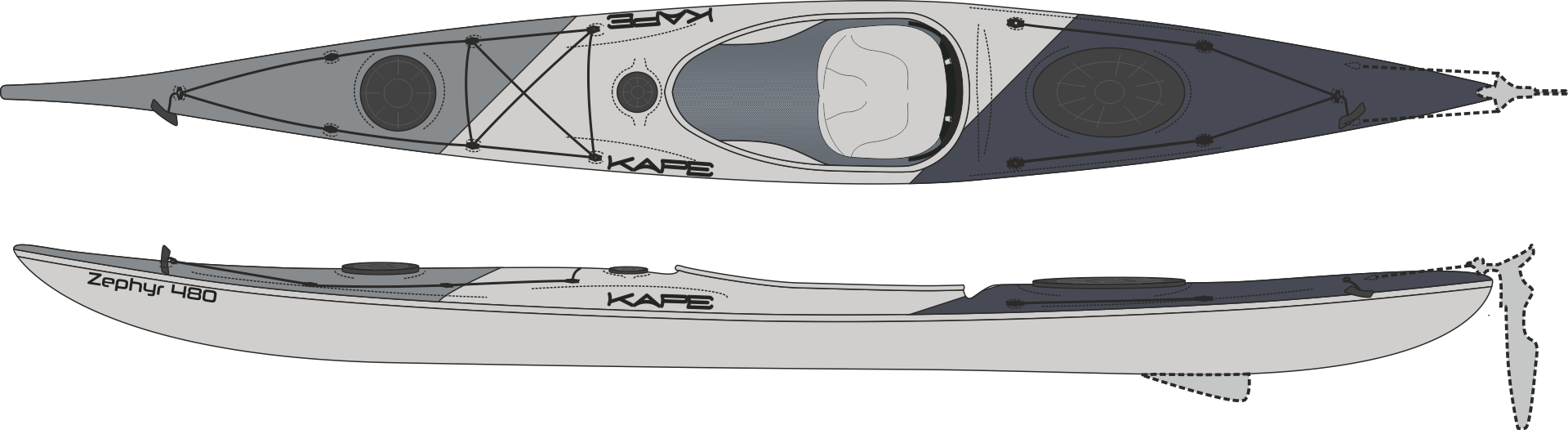

  • #0501-02 - ZIG VAR

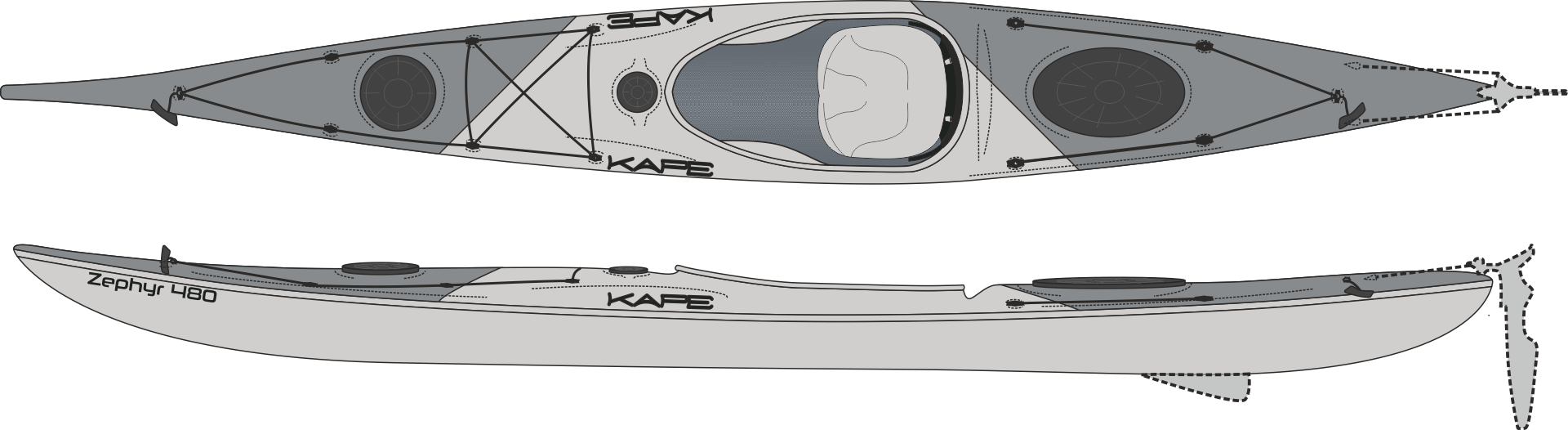

  • #0502 - ZIG-ZAG
  • #0502-02 - ZIG-ZAG VAR

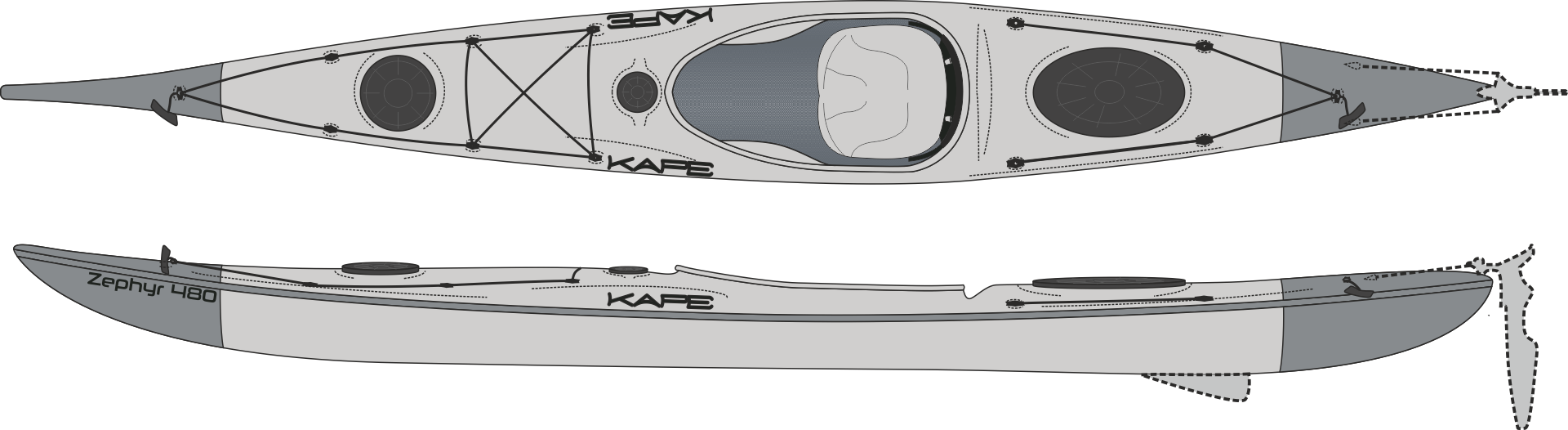

  • #0601 - NOSE-TAIL

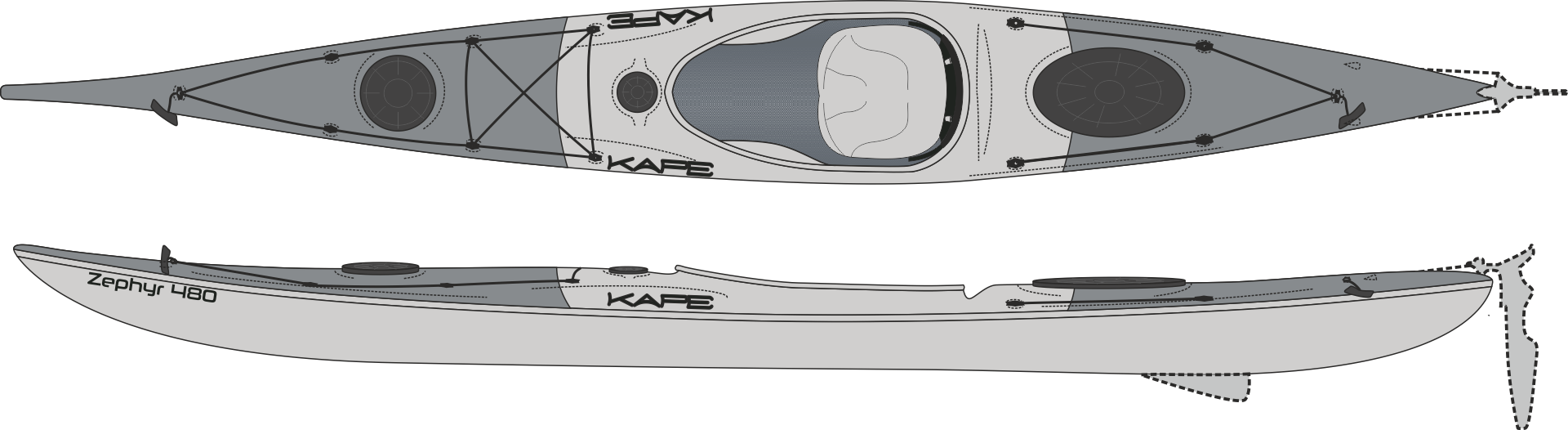

  • #0701 - CIRCLE
  • #0701-02 - CIRCLE VAR
RAL 1001
RAL 1001 "Beige"
RAL 1016
RAL 1016 "Sulfur yellow"
RAL 1018
RAL 1018 "Zinc yellow"
RAL 1023
RAL 1023 "Traffic yellow"
RAL 2003
RAL 2003 "Pastel orange"
RAL 2004
RAL 2004 "Pure orange"
"KAPE red"
RAL 3003
RAL 3003 "Ruby red"
RAL 3020
RAL 3020 "Traffic red"
RAL 3027
RAL 3027 "Raspberry red"
RAL 4003
RAL 4003 "Heather violet"
RAL 4004
RAL 4004 "Claret violet"
RAL 4005
RAL 4005 "Blue lilac"
RAL 4006
RAL 4006 "Traffic purple"
RAL 4008
RAL 4008 "Signal violet"
RAL 4010
RAL 4010 "Telemagenta"
RAL 5002
RAL 5002 "Ultramarine blue"
RAL 5003
RAL 5003 "Sapphire blue"
RAL 5005
RAL 5005 "Signal blue"
RAL 5010
RAL 5010 "Gentian blue"
RAL 5012
RAL 5012 "Light blue
RAL 5013
RAL 5013 "Cobalt blue
RAL 5015
RAL 5015 "Sky blue
RAL 5017
RAL 5017 "Traffic blue
RAL 5018
RAL 5018 "Turquoise blue"
RAL 5021
RAL 5021 "Water blue"
RAL 5023
RAL 5023 "Distant blue"
RAL 6001
RAL 6001 "Emerald green"
RAL 6018
RAL 6018 "Yellow green"
RAL 6019
RAL 6019 "Pastel green"
RAL 6026
RAL 6026 "Opal green"
RAL 6029
RAL 6029 "Mint green"
RAL 6034
RAL 6034 "Pastel turquoise"
RAL 7001
RAL 7001 "Silver grey"
RAL 7004
RAL 7004 "Signal grey"
RAL 7016
RAL 7016 "Anthracite grey"
RAL 7024
RAL 7024 "Graphite grey"
RAL 7033
RAL 7033 "Cement grey"
RAL 7037
RAL 7037 "Dusty grey"
RAL 7047
RAL 7047 "Telegrey 4"
RAL 9010
RAL 9010 "Pure white"
RAL 9017
RAL 9017 "Traffic black"
Clear carbon (limited availability)
Clear carbon (limited availability)
Clear carbon-kevlar (limited availability)
Clear carbon-kevlar (limited availability)

Tips & more about the available colours

Think carefully about choosing black and dark colours!

Such boats warm up more & they become matt very soon. Scratches and limescale are also much more visible on these surfaces.

Less is more:

We recommend picking only two, maximum three colours for a coherent boat design.

More is more:

(Because of the overlapping gelcoat layers) more colours results in more weight.

Availability of clear (transparent) surfaces:

Clear carbon seat & cockpit rim are available in EXTRA & ULTRA constructions.

Clear carbon hull is available in EXTRA & ULTRA constructions.
(Bow & stern of the clear carbon boat are black gradient)

Clear carbon-kevlar hull is available in SUPER construction.
(Bow & stern of the clear carbon-kevlar boat hulls are colored)

RAL colors CANNOT be displayed entirely proper on computer screens. The color depends on your monitor and printer. Therefore the exact shade of the product may be different than seen here! Please use these color samples as a reference only! We recommend you to see a physical and official RAL color guide to be sure of the correct color.
FITTINGS
As standard, our kayaks are equipped with high-quality and easily adjustable fittings intended for general use.

  • STANDARD

    Standard Choice

    R312
    "SmartTrack" Overstern Rudder
    F312
    "SmartTrack" Foot Pedal
    S151
    Sea Kayak Seat
    S192
    Padded Backrest
    H312
    10 cm Daily Storage Hatch
    H341
    24 cm Front Storage Hatch, Click-on Cover
    H361
    44/26 cm Rear Storage Hatch, Click-on Cover

    Available at no extra charge

    R21
    Retractable Skeg
    F311
    "SmartTrack" Foot Brace

    Available for extra charge

    R21 + R312
    Retractable Skeg + "SmartTrack" Overstern Rudder
    S22
    "KS" Foam Backrest with webbings
    H342
    24 cm Front Storage Hatch, Rubber Cover
    H362
    44/26 cm Rear Storage Hatch, Rubber Cover
    R191
    Bungee Net
    S23
    Foam for Seat
    M21
    Foam for thighbrace

  • STANDARD+

    Standard Choice

    R312
    "SmartTrack" Overstern Rudder
    F312
    "SmartTrack" Foot Pedal
    S151
    Sea Kayak Seat
    S192
    Padded Backrest
    H312
    10 cm Daily Storage Hatch
    H341
    24 cm Front Storage Hatch, Click-on Cover
    H361
    44/26 cm Rear Storage Hatch, Click-on Cover

    Available at no extra charge

    R21
    Retractable Skeg
    F311
    "SmartTrack" Foot Brace
    S22
    "KS" Foam Backrest with webbings

    Available for extra charge

    R21 + R312
    Retractable Skeg + "SmartTrack" Overstern Rudder
    H342
    24 cm Front Storage Hatch, Rubber Cover
    H362
    44/26 cm Rear Storage Hatch, Rubber Cover
    R191
    Bungee Net
    S23
    Foam for Seat
    M21
    Foam for thighbrace

  • SUPER

    Standard Choice

    R312
    "SmartTrack" Overstern Rudder
    F312
    "SmartTrack" Foot Pedal
    S151
    Sea Kayak Seat
    S192
    Padded Backrest
    H312
    10 cm Daily Storage Hatch
    H341
    24 cm Front Storage Hatch, Click-on Cover
    H361
    44/26 cm Rear Storage Hatch, Click-on Cover

    Available at no extra charge

    R21
    Retractable Skeg
    F311
    "SmartTrack" Foot Brace
    S22
    "KS" Foam Backrest with webbings

    Available for extra charge

    R21 + R312
    Retractable Skeg + "SmartTrack" Overstern Rudder
    H342
    24 cm Front Storage Hatch, Rubber Cover
    H362
    44/26 cm Rear Storage Hatch, Rubber Cover
    R191
    Bungee Net
    S23
    Foam for Seat
    M21
    Foam for thighbrace

  • EXTRA

    Standard Choice

    R312
    "SmartTrack" Overstern Rudder
    F312
    "SmartTrack" Foot Pedal
    S151
    Sea Kayak Seat
    S192
    Padded Backrest
    H312
    10 cm Daily Storage Hatch
    H341
    24 cm Front Storage Hatch, Click-on Cover
    H361
    44/26 cm Rear Storage Hatch, Click-on Cover

    Available at no extra charge

    R21
    Retractable Skeg
    F311
    "SmartTrack" Foot Brace
    S22
    "KS" Foam Backrest with webbings

    Available for extra charge

    R21 + R312
    Retractable Skeg + "SmartTrack" Overstern Rudder
    H342
    24 cm Front Storage Hatch, Rubber Cover
    H362
    44/26 cm Rear Storage Hatch, Rubber Cover
    R191
    Bungee Net
    S23
    Foam for Seat
    M21
    Foam for thighbrace

  • ULTRA

    Standard Choice

    R312
    "SmartTrack" Overstern Rudder
    F312
    "SmartTrack" Foot Pedal
    S151
    Sea Kayak Seat
    S192
    Padded Backrest
    H312
    10 cm Daily Storage Hatch
    H341
    24 cm Front Storage Hatch, Click-on Cover
    H361
    44/26 cm Rear Storage Hatch, Click-on Cover
    M21
    Foam for thighbrace

    Available at no extra charge

    R21
    Retractable Skeg
    F311
    "SmartTrack" Foot Brace
    S22
    "KS" Foam Backrest with webbings
    H342
    24 cm Front Storage Hatch, Rubber Cover
    H362
    44/26 cm Rear Storage Hatch, Rubber Cover
    M191
    Bungee Net

    Available for extra charge

    R21 + R312
    Retractable Skeg + "SmartTrack" Overstern Rudder
    S23
    Foam for Seat
